Cascade Series



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Master Grade Chocolate Heart Myrtle top, back & sides

  • Walnut body binding with Abalone purfling on top

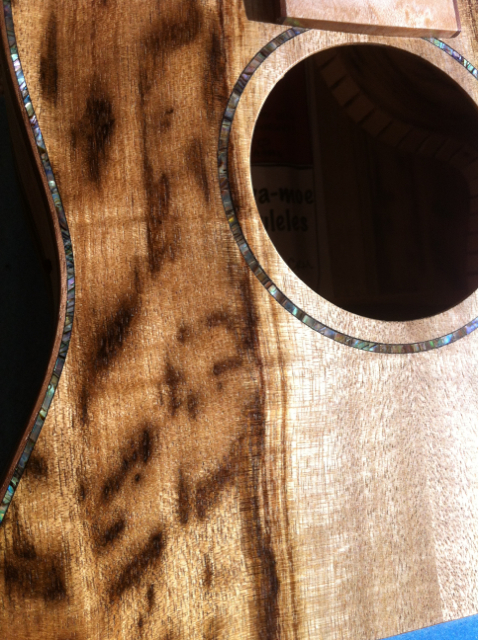

  • Abalone rosette

  • Hand-rubbed oil finish

  • Radiused Maple fretboard with Walnut binding & Special Inlay markers

  • Port Orford Cedar neck

  • Peghed brand geared tuners

  • Custom Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: This wood species is available by ordering Master Grade Myrtle

Cascade Series Wood Cascade Series Wood

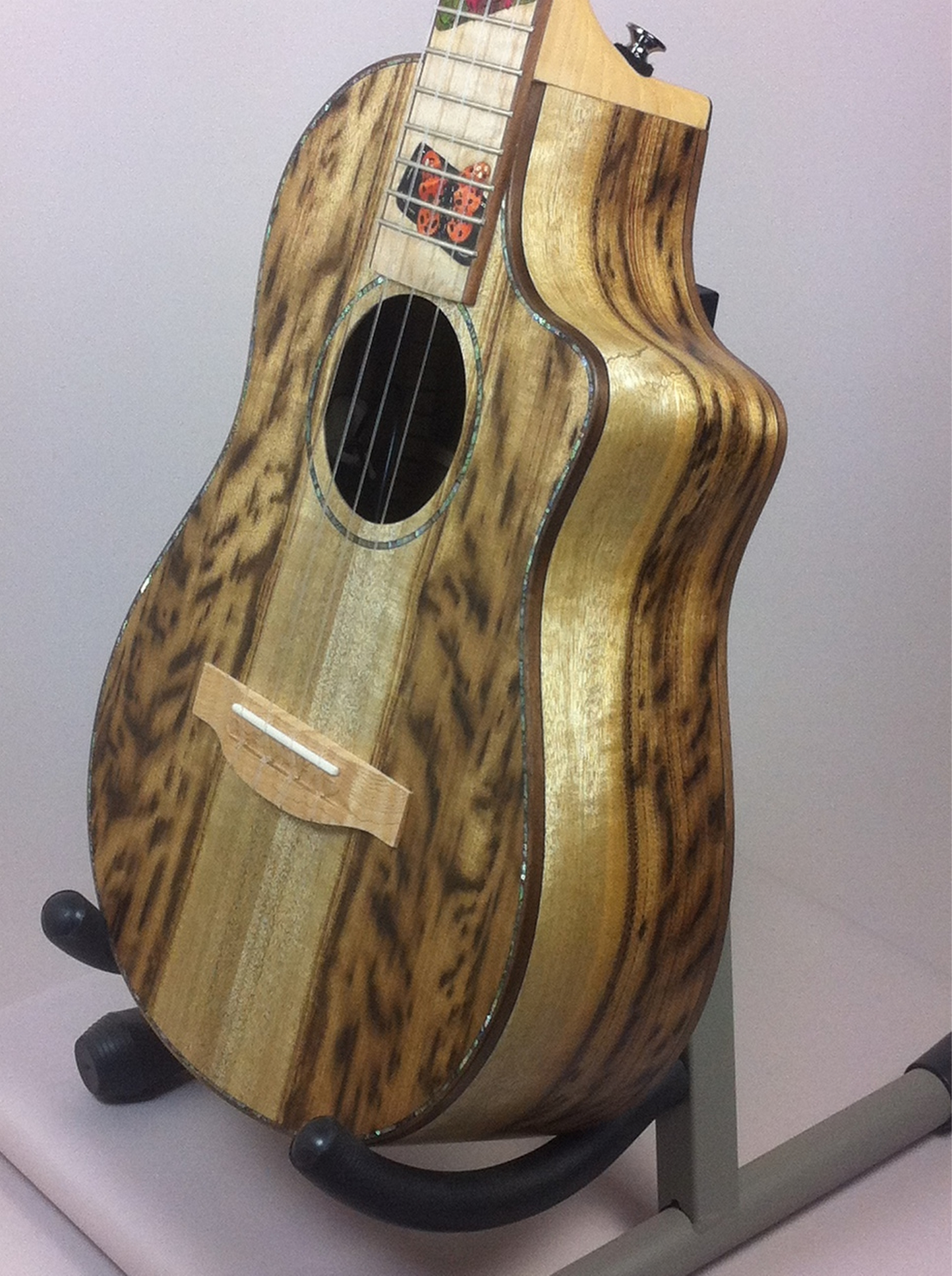

Gallery Photos (completed instrument)

Back


Warning: filesize(): stat failed for images/instruments/1053Back.jpg in /home/myamoe5/public_html/uketracker.php on line 564

Front

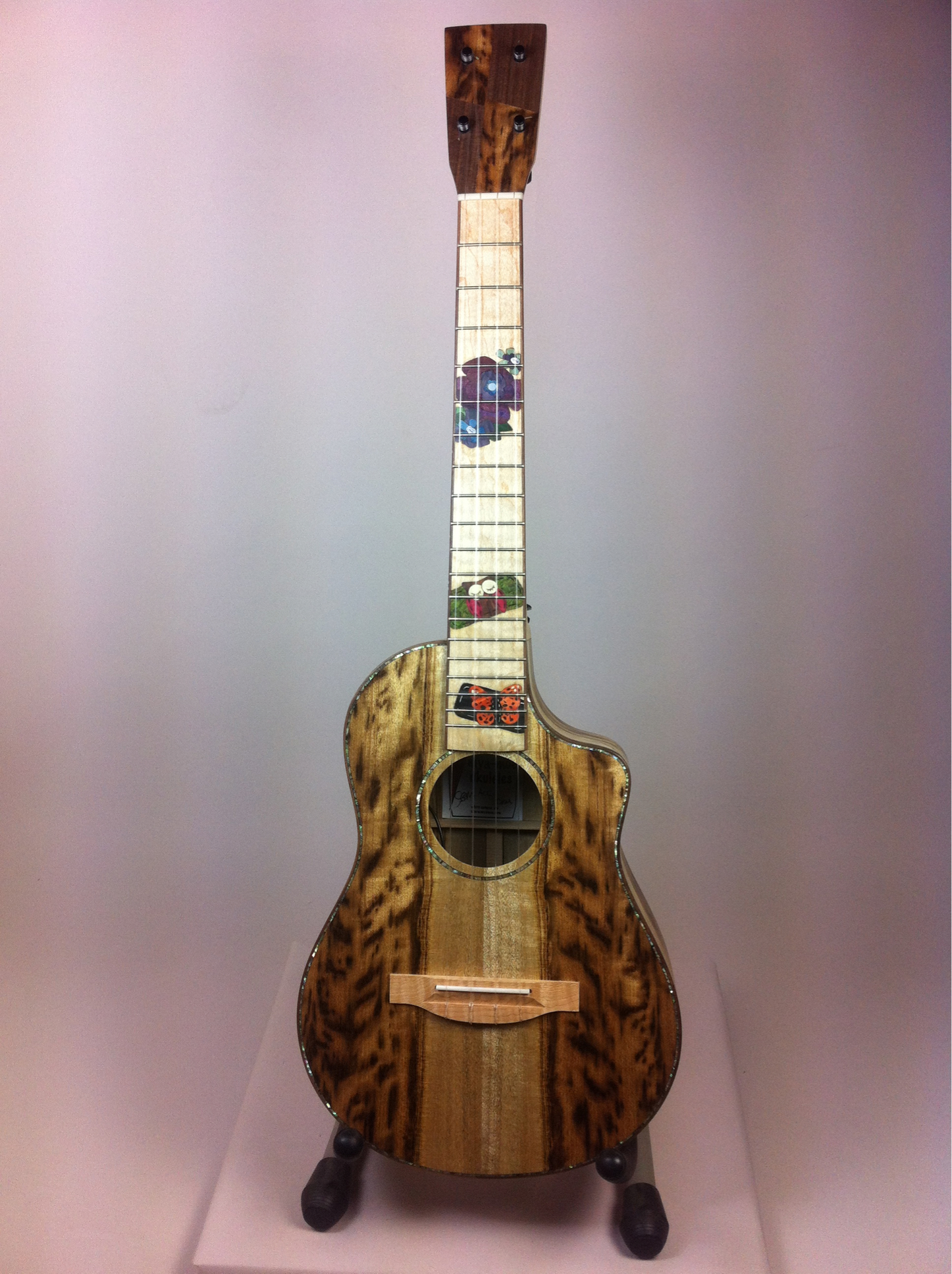

Full Front
Owner Pics & Instrument Videos

Master Grade Chocolate Heart Myrtle

Tenor Cutaway Classic
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

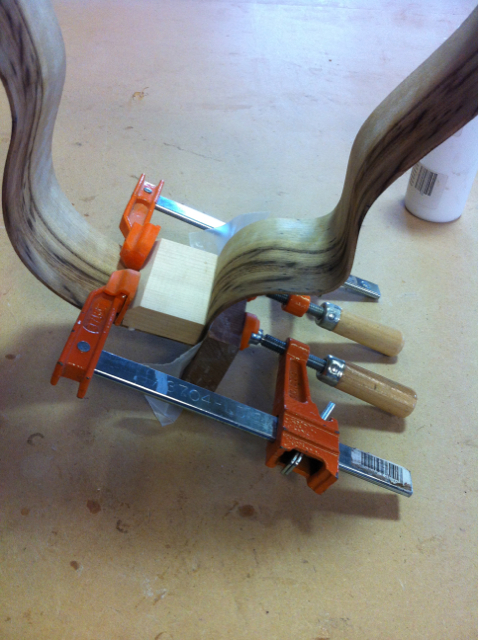

bend sides, glue in neck block

2

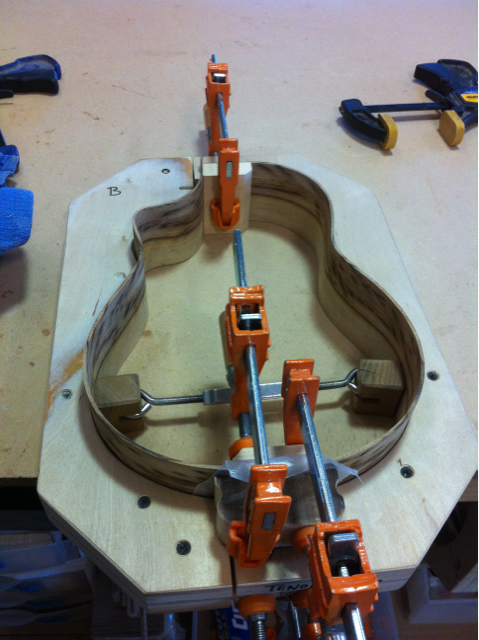

glue in tail block

3

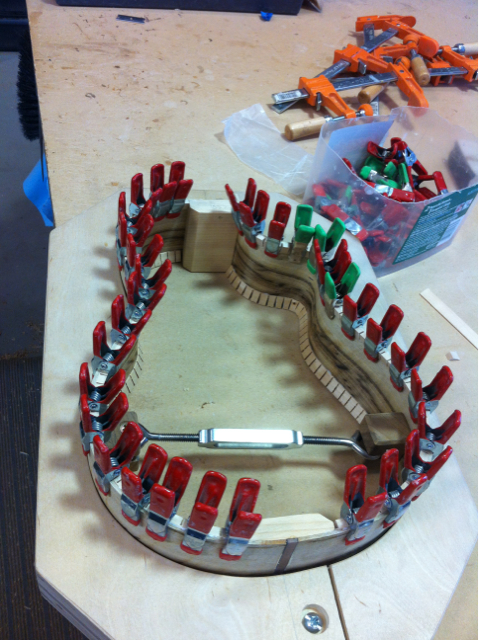

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

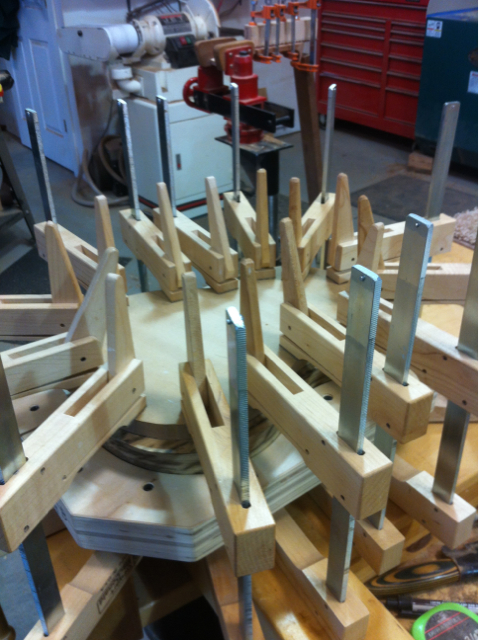

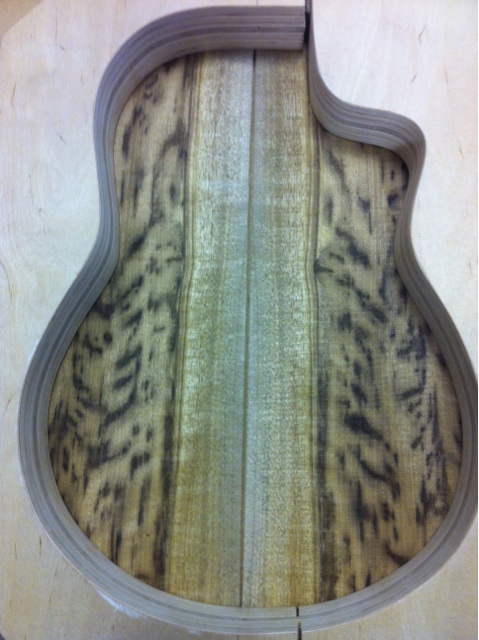

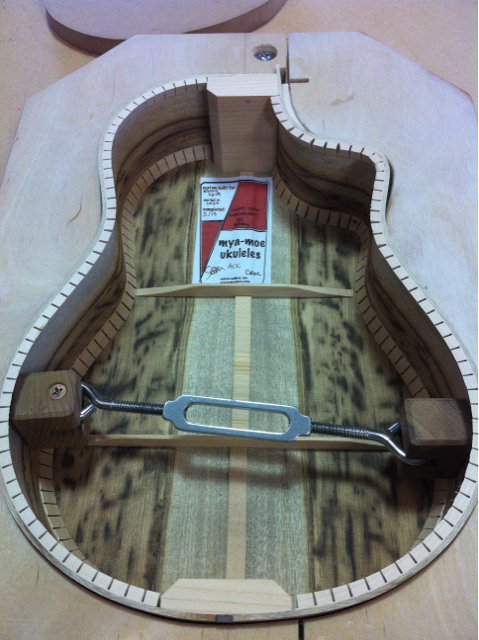

brace top/back, glue back onto sides

5

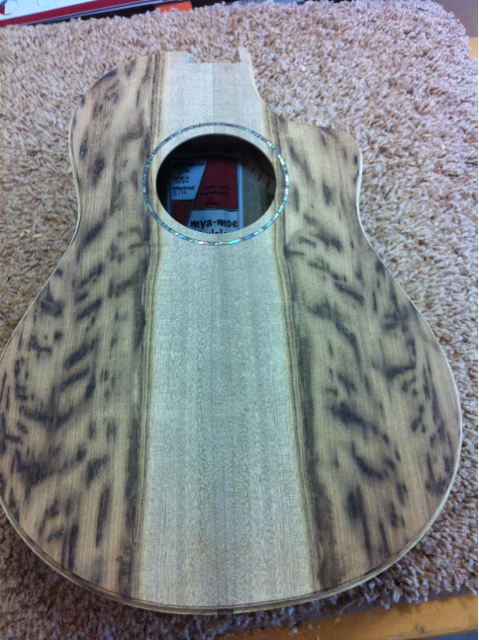

carve braces, glue top onto sides, prep fretboard & neck

6

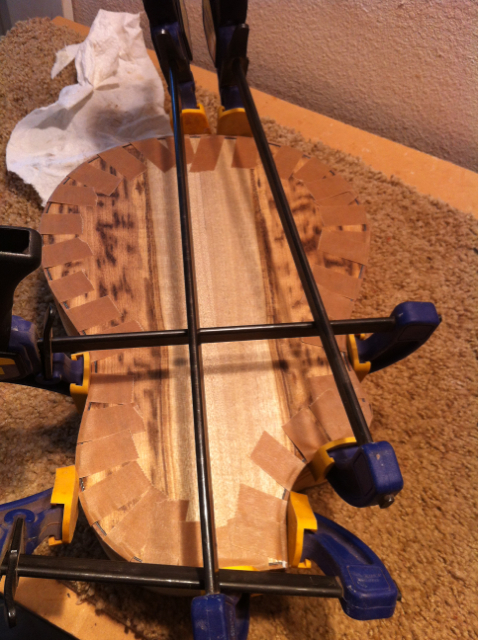

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

glue fretboard to neck, glue in back binding

8

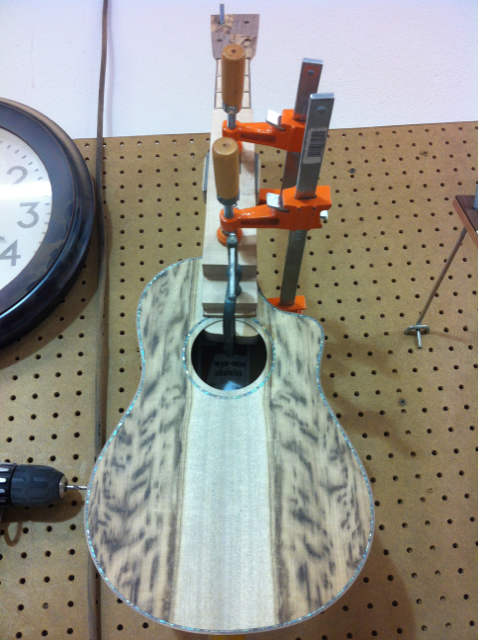

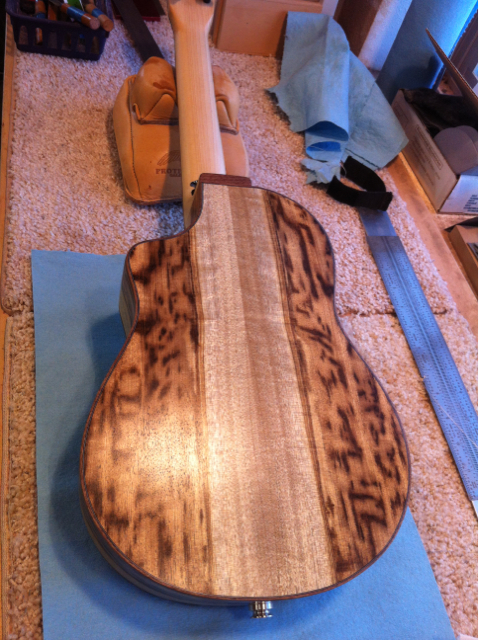

shape neck, dress fret ends, join neck to body

9

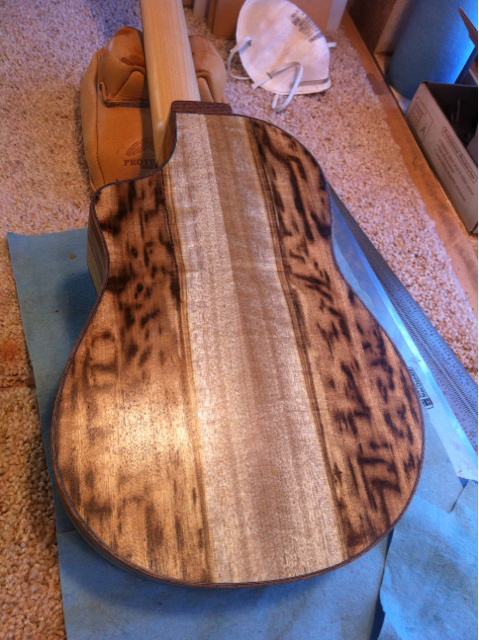

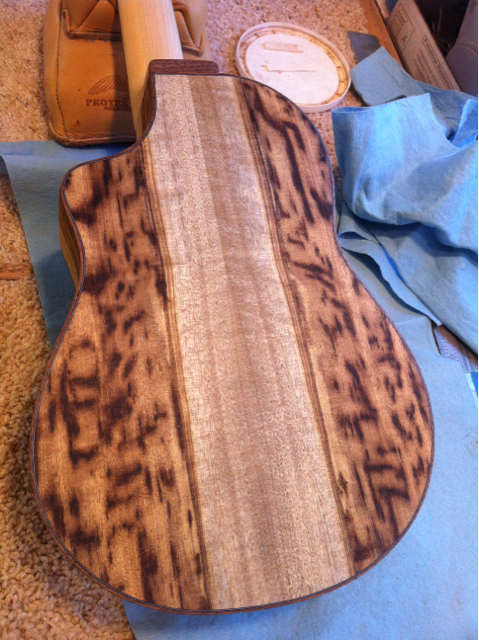

hand sand and prep for finish, first coat of oil

10

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

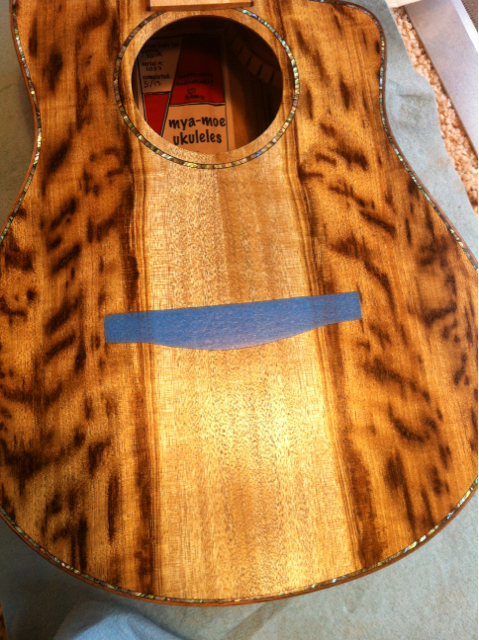

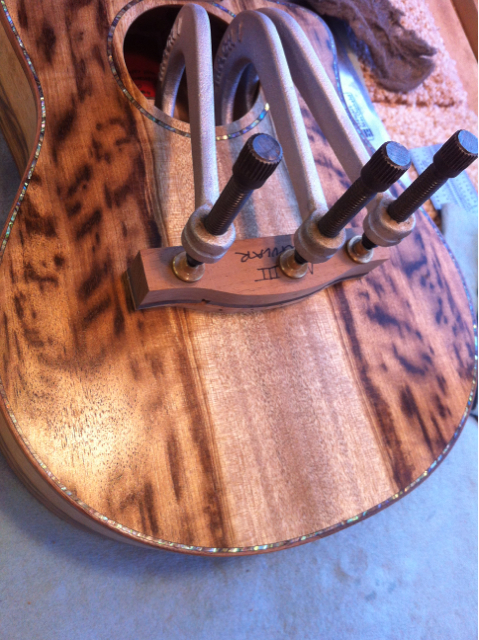

apply lemon oil, glue on bridge

14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings
Original Wood Set
