Scheduled Start Date: Jan 13, 2010
Completed: Feb 01, 2010

This Six-String is definitely a head-turner. The curly mango has magnificent color but the real feature is that sparkly, amazing tone that is distinctly the Mya-Moe 6-string sound.

  • Master Grade Curly Mango top, back & sides

  • Koa body binding

  • Abalone rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Koa binding & Abalone markers

  • Mahogany neck

  • Geared machine head tuners with amber buttons

  • Leopardwood & Maple Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Gordon & Char Mayer. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: This wood species is available by ordering Master Grade Mango



Gallery Photos (completed instrument)

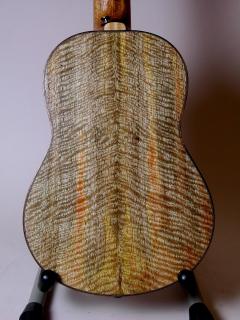

Back

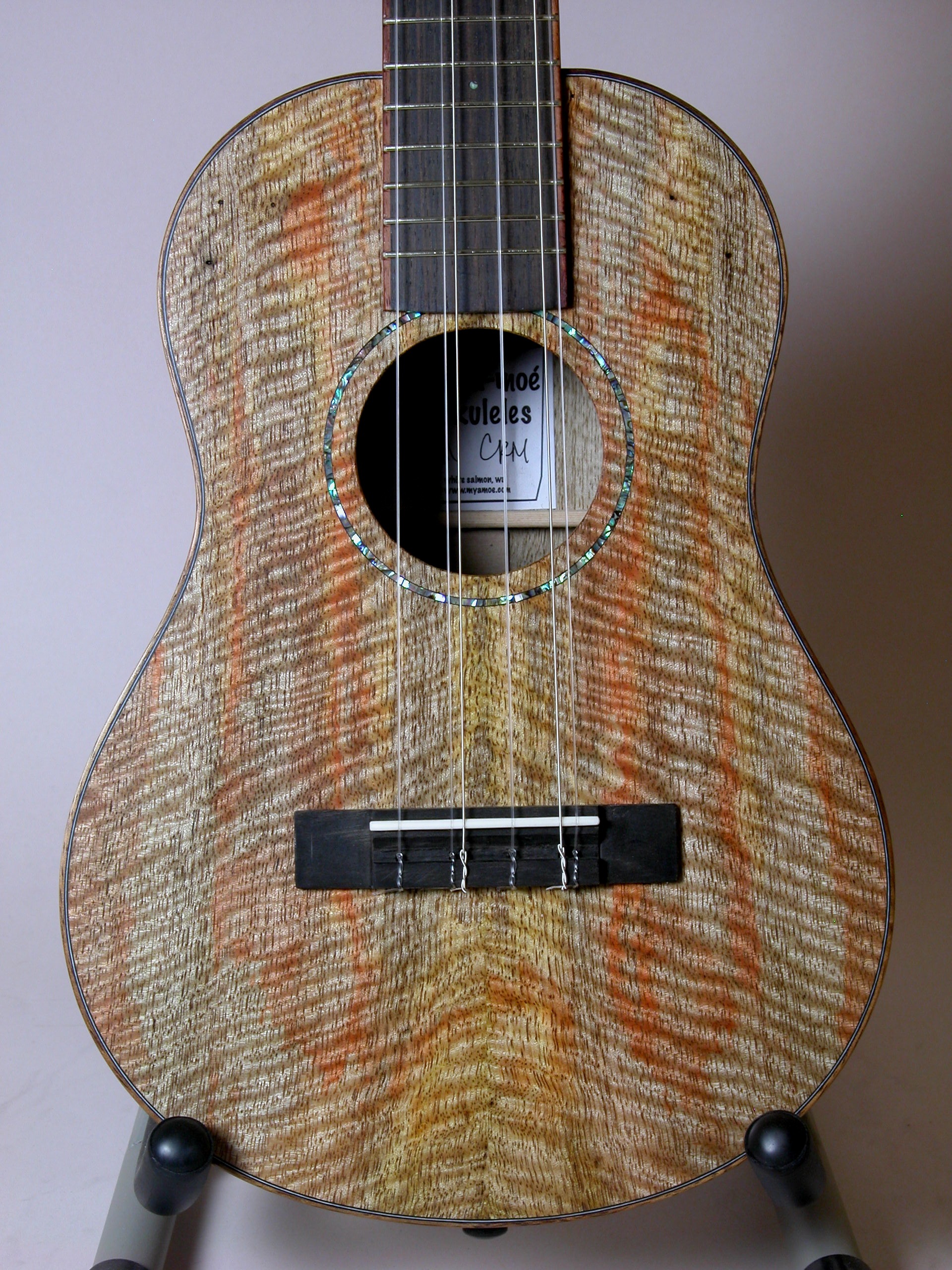

Front

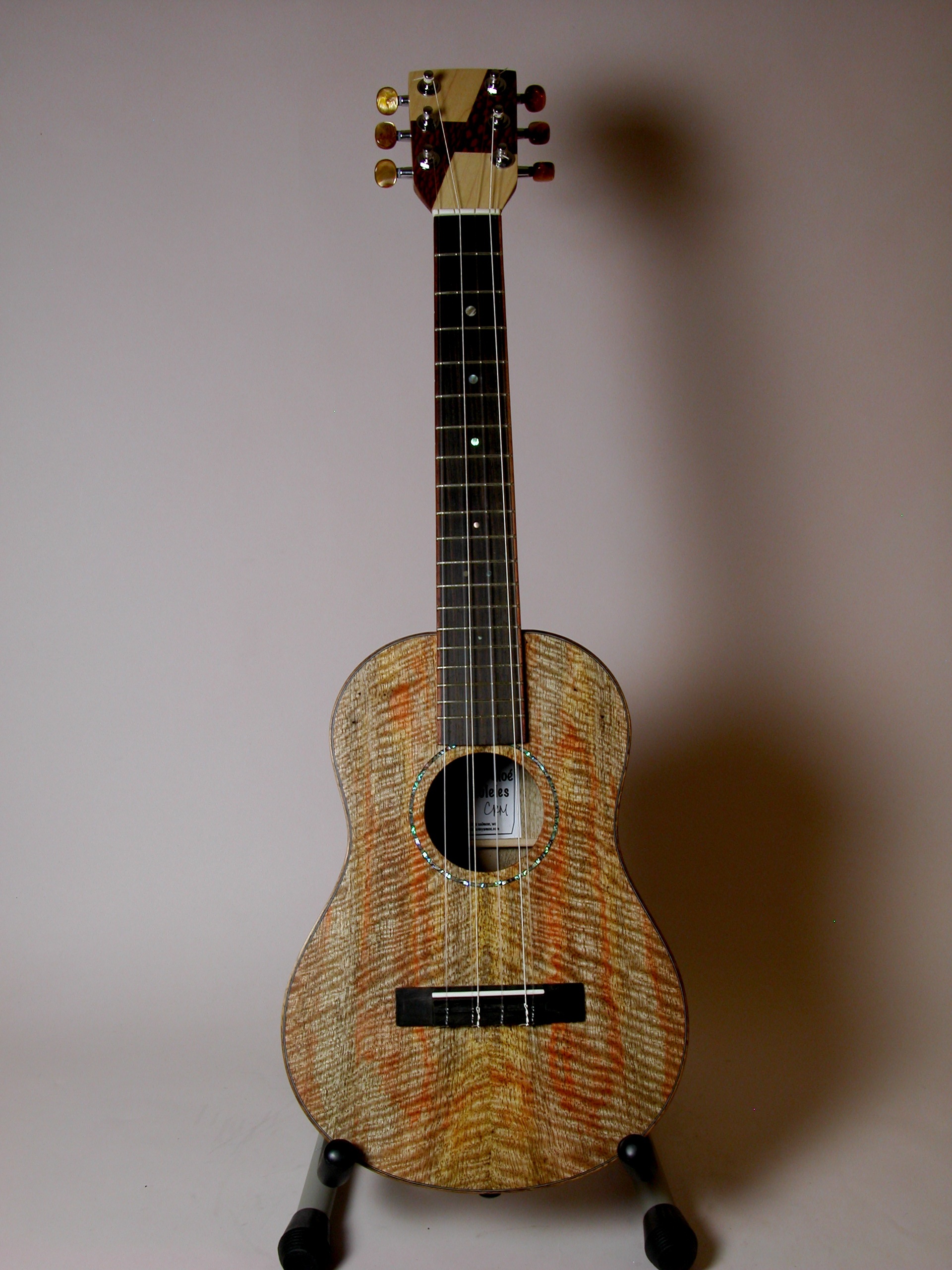

Full Front
Build Schedule


Date





1

bend sides, glue in neck block



2

glue in tail block



3

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back



4

brace top, glue back onto sides



5

glue top onto sides, prep fretboard & neck



6

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding



7

shape neck, dress fret ends, glue in back binding



8

prep for finish, glue neck/fretboard onto body



9

first coat of oil



10

second coat of oil



11

third coat of oil



12

fourth coat of oil



13

apply lemon oil, glue on bridge



14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings
