  • Curly Myrtle top, back & sides

  • Walnut body binding

  • Walnut rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Walnut binding & Abalone markers

  • Mahogany neck

  • Geared machine head tuners with amber buttons

  • Walnut & Maple Signature Headplate

Hand-crafted in the USA by Cary Kelly. Each instrument is numbered & signed.



Wood Grade: Classic
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood



Gallery Photos (completed instrument)

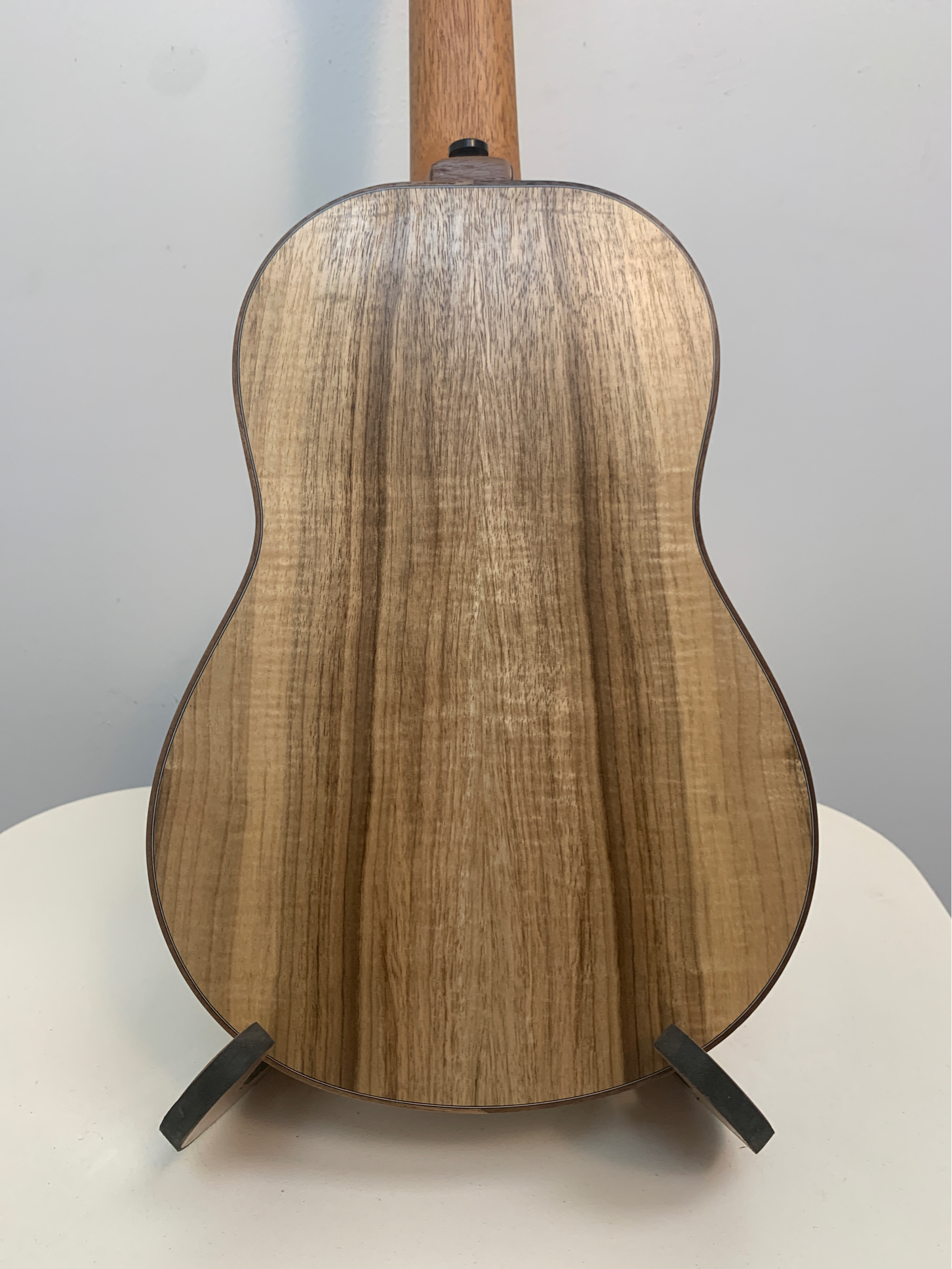

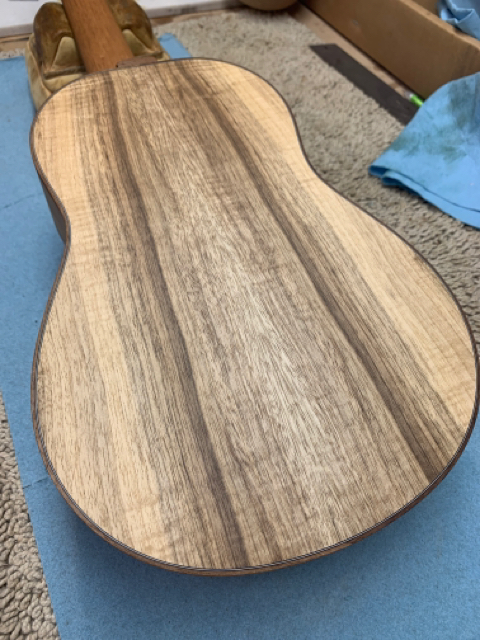

Back

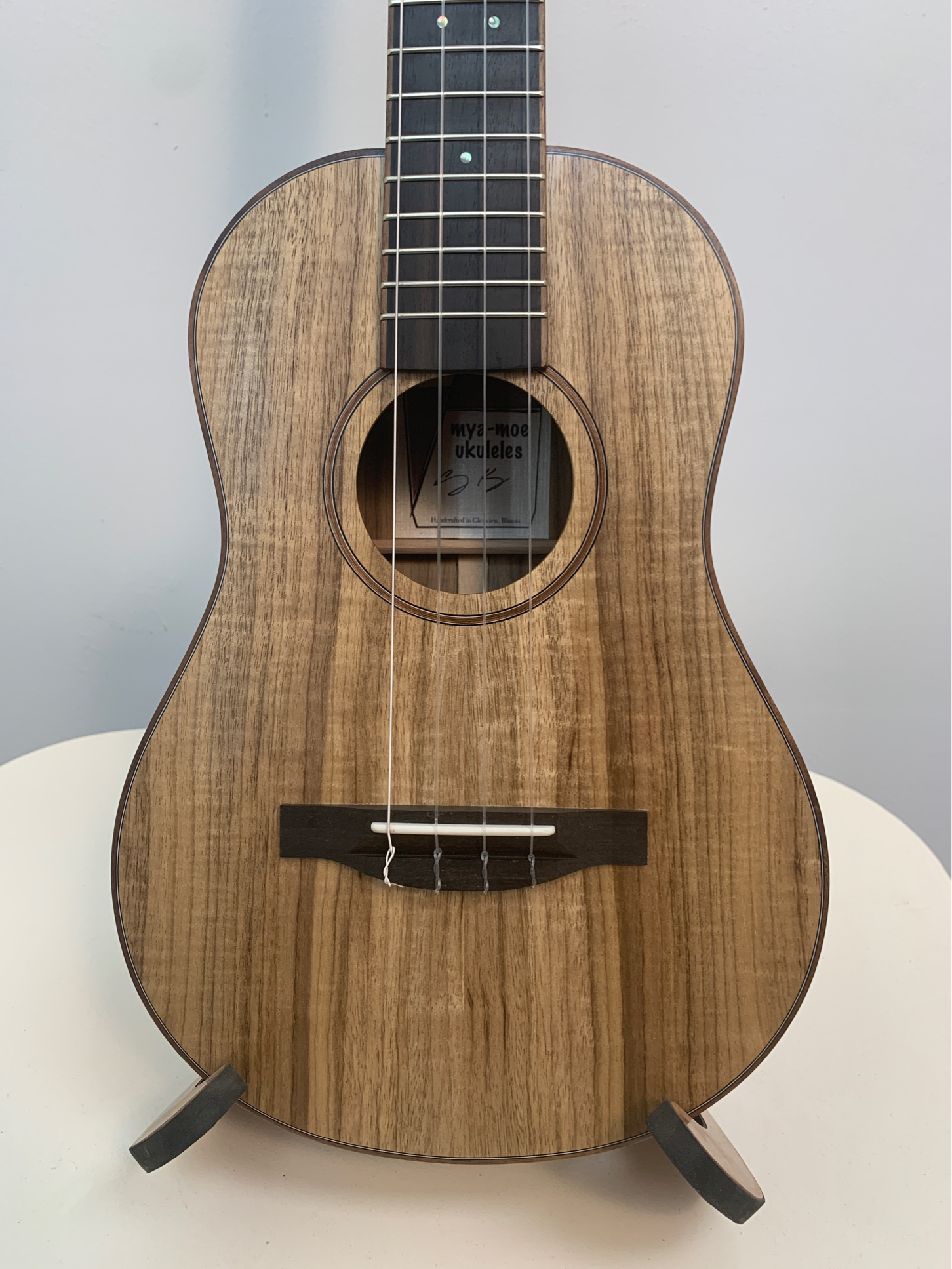

Front

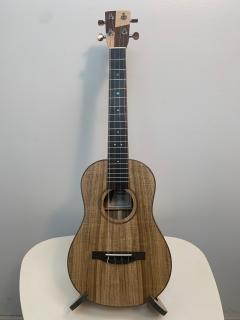

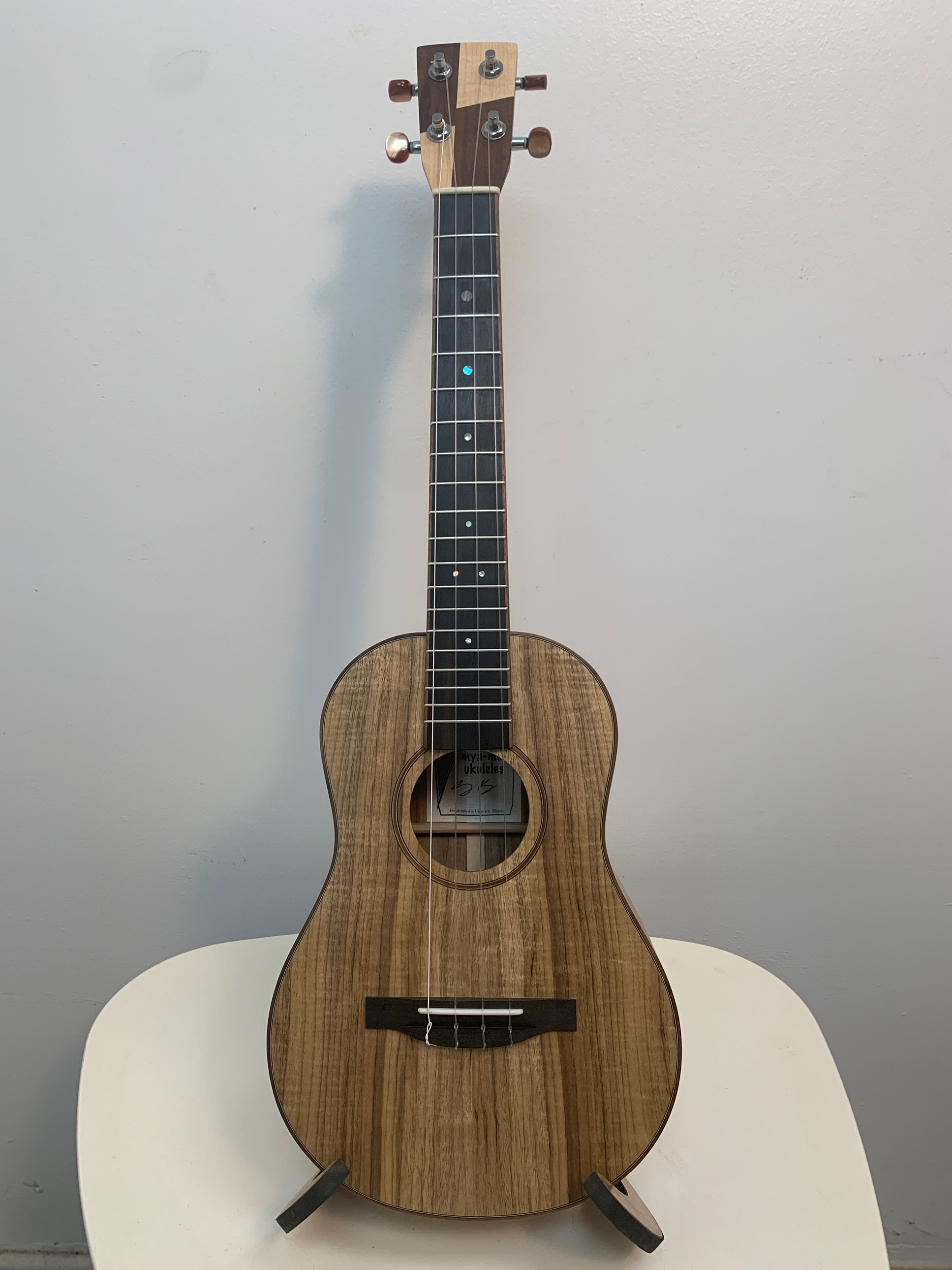

Full Front
Owner Pics & Instrument Videos

CWD: #2703

Completed Word Demo of a Curly Myrtle Tenor courtesy of Mike Poupko.

Build Schedule

Step

Description

 Picture, Click to Enlarge

1

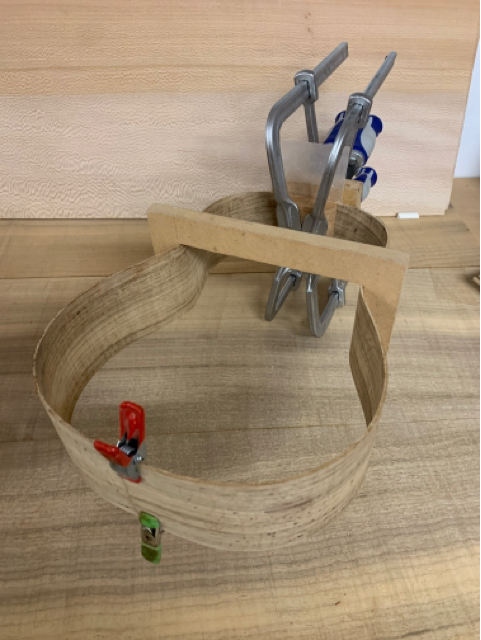

bend sides, glue in neck block

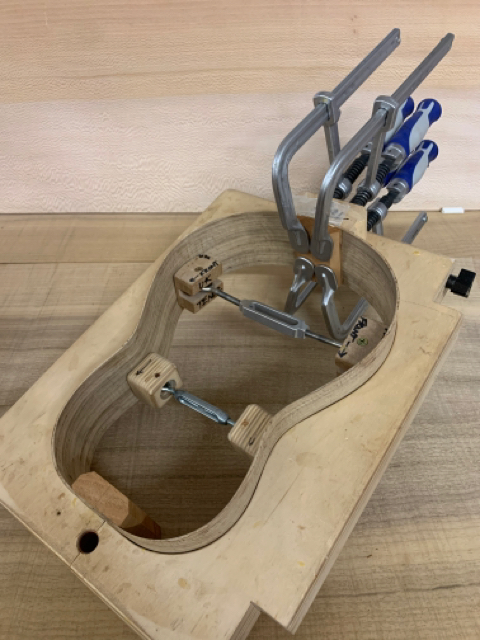

2

glue in tail block

3

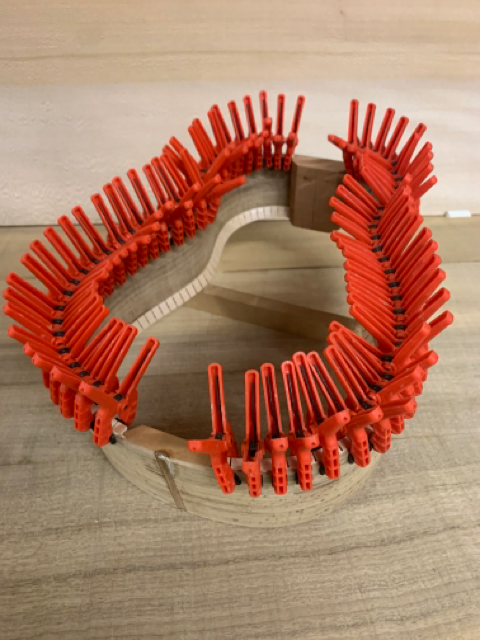

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

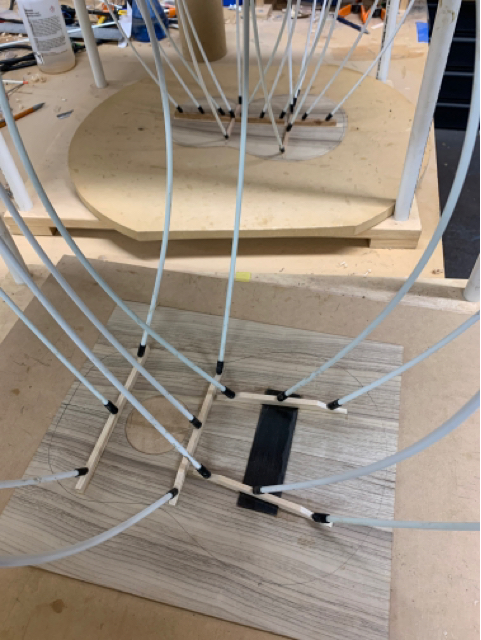

brace top/back, glue back onto sides

5

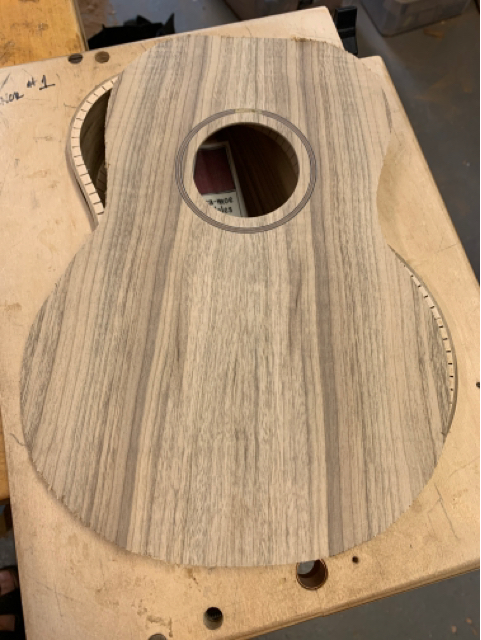

carve braces, glue top onto sides, prep fretboard & neck

6

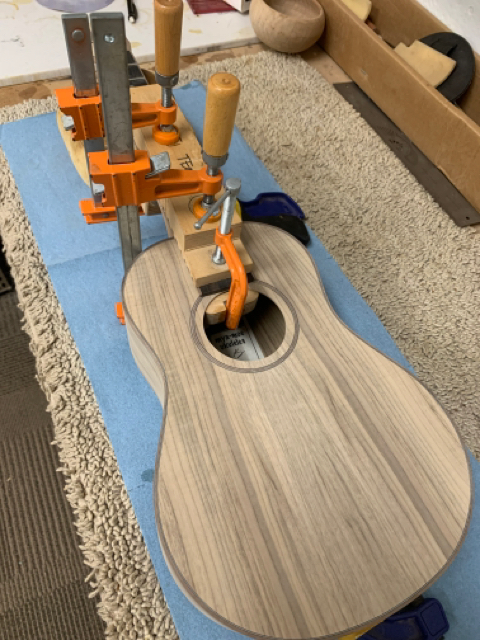

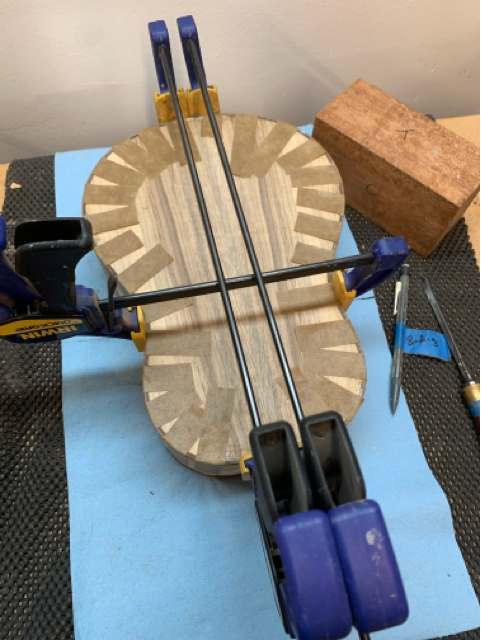

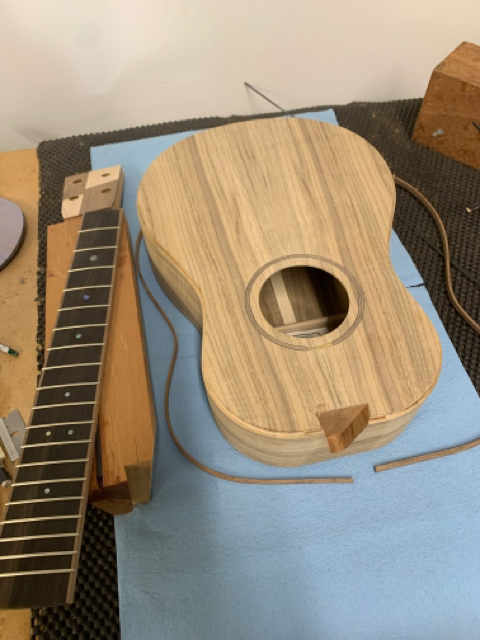

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

7

glue fretboard to neck, glue in back binding

8

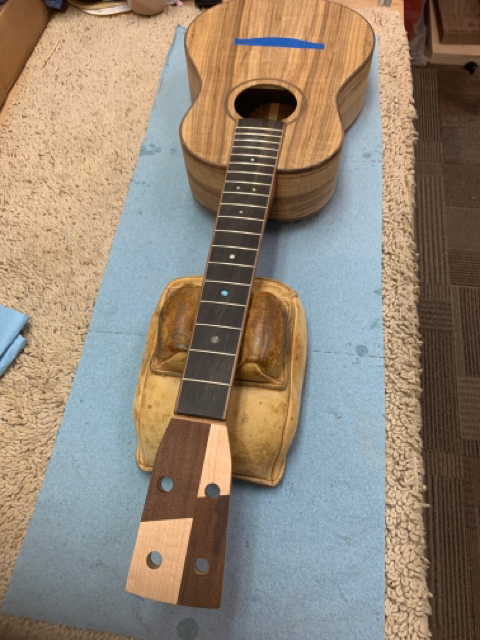

shape neck, dress fret ends, join neck to body

9

hand sand and prep for finish, first coat of oil

10

second coat of oil



11

third coat of oil

12

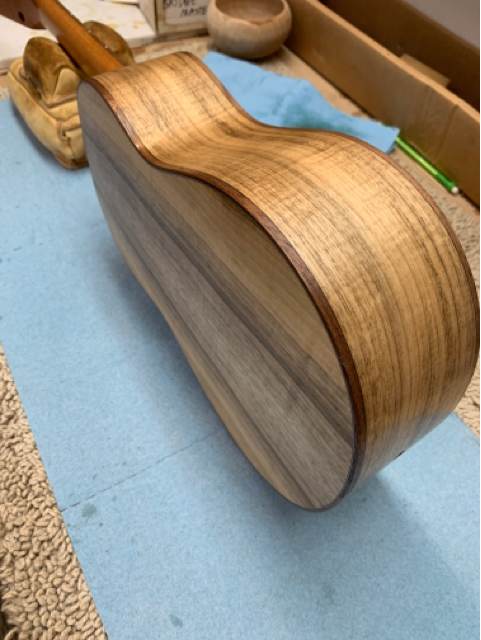

fourth coat of oil

13

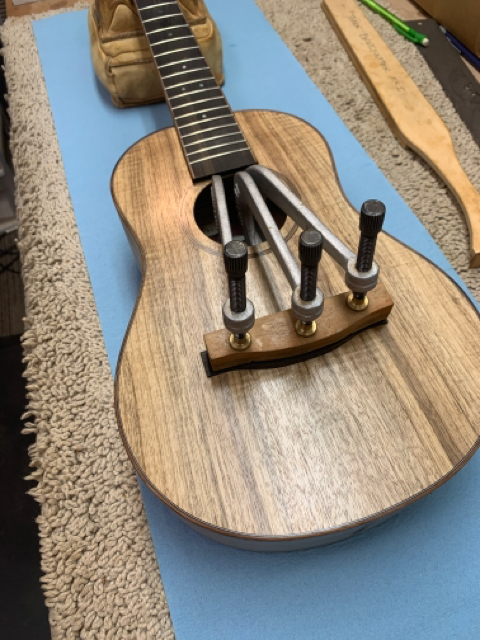

glue on bridge

14

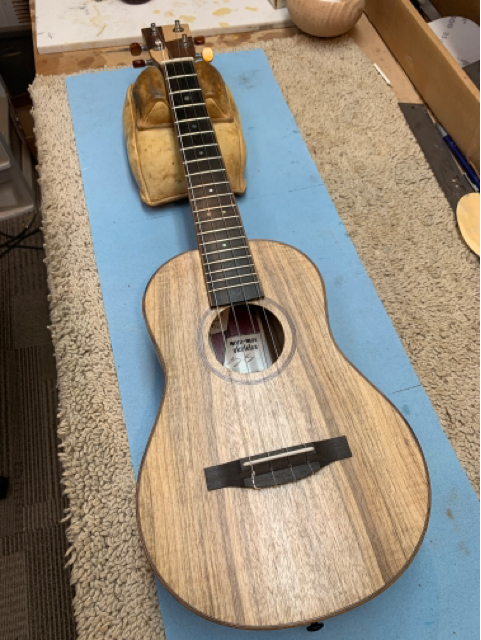

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

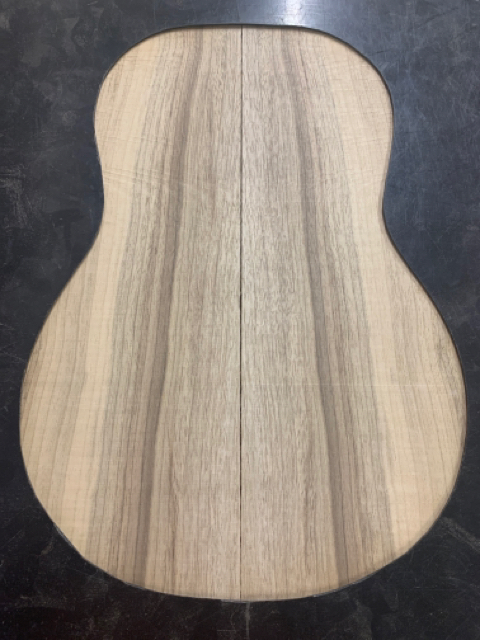

Original Wood Set
