  • Master Grade Koa top, back & sides

  • Ebony body binding

  • Black wood rosette

  • High gloss finish

  • Radiused Ebony fretboard with Ebony binding & Abalone markers

  • Mahogany neck

  • Gotoh UPT 4:1 Planetary gear tuners

  • Custom Signature Headplate

Hand-crafted in the USA by Cary Kelly. Each instrument is numbered & signed.



Wood Grade: Specialty
Wood Availability: This wood species is available. Specific wood sets vary.

Cascade Series Wood Cascade Series Wood

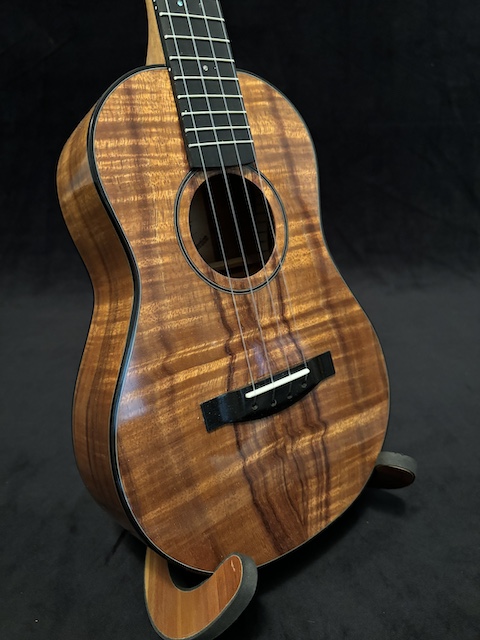

Gallery Photos (completed instrument)

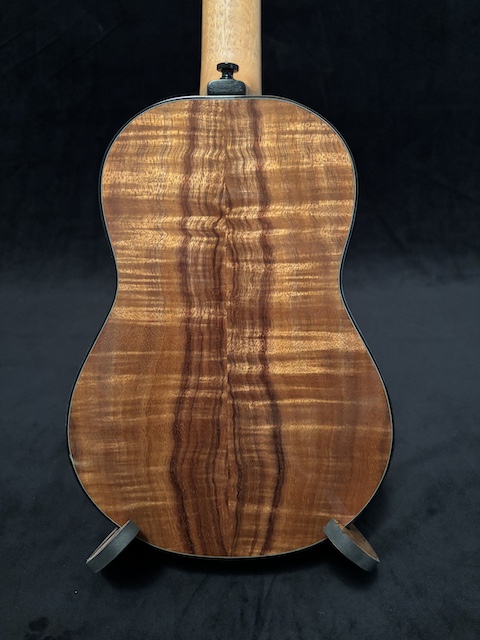

Back

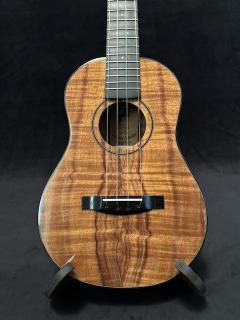

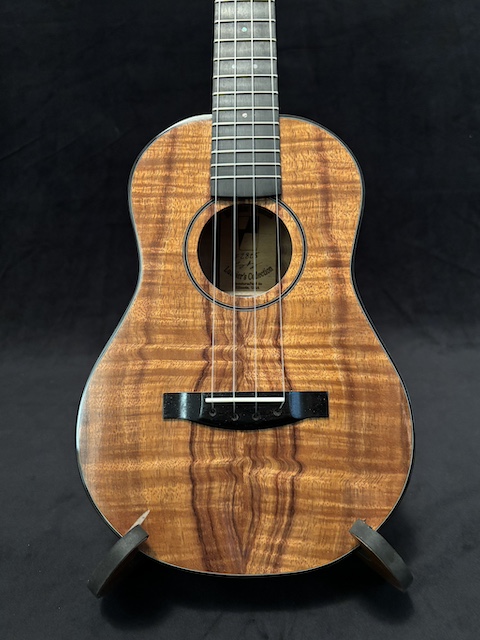

Front

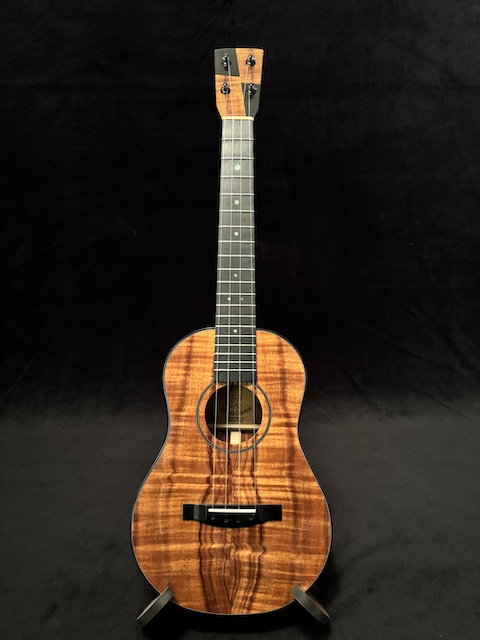

Full Front
Owner Pics & Instrument Videos

Lil’ Rev

CWD: #2825, Master Grade Koa Tenor with high-gloss poly finish
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

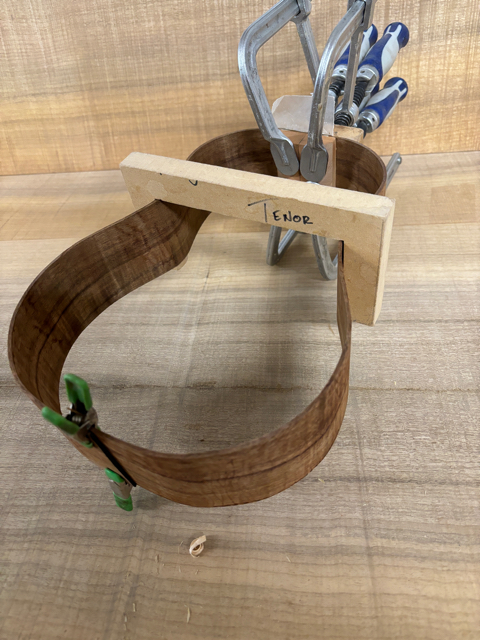

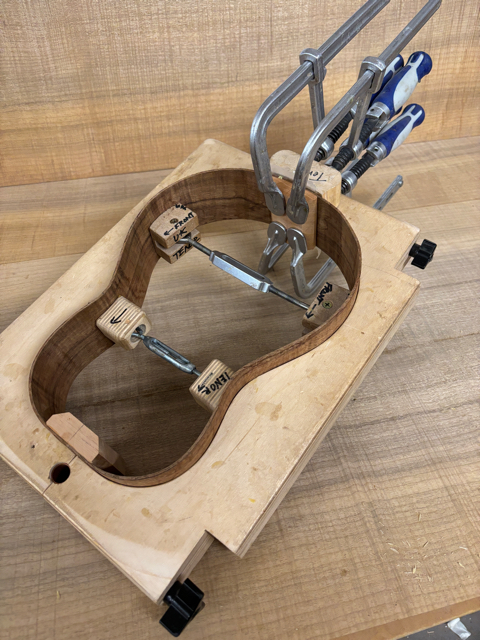

bend sides, glue in neck block

2

glue in tail block

3

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back

4

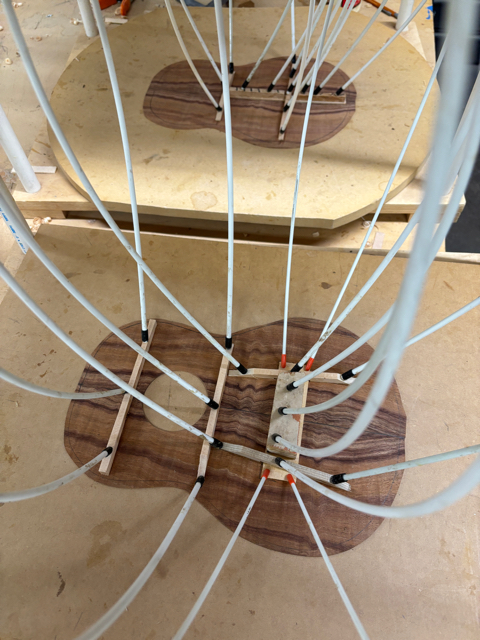

brace top, glue back onto sides

5

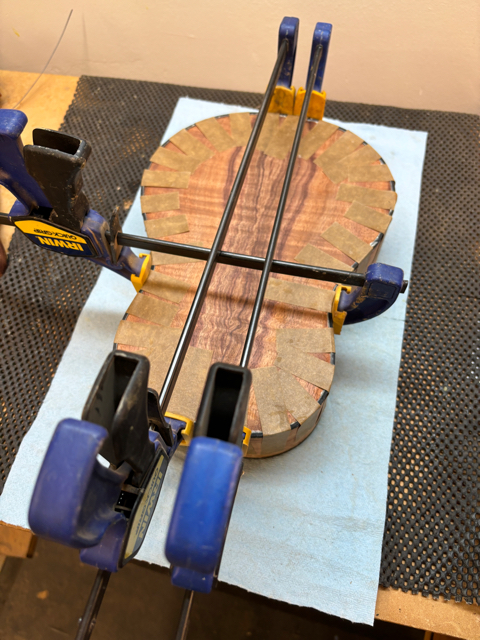

glue top onto sides, prep fretboard & neck

6

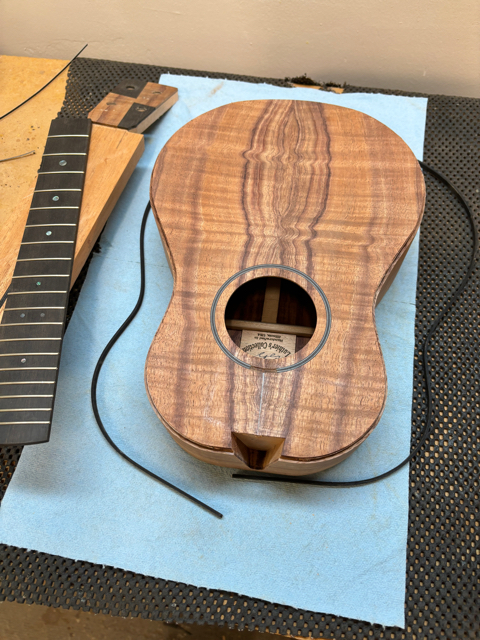

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding

7

shape neck, dress fret ends, glue in back binding

8

prep for finish, tape off for spraying

9

fill pores



10

gloss topcoat



11

buff finish



12

glue neck/fretboard onto body



13

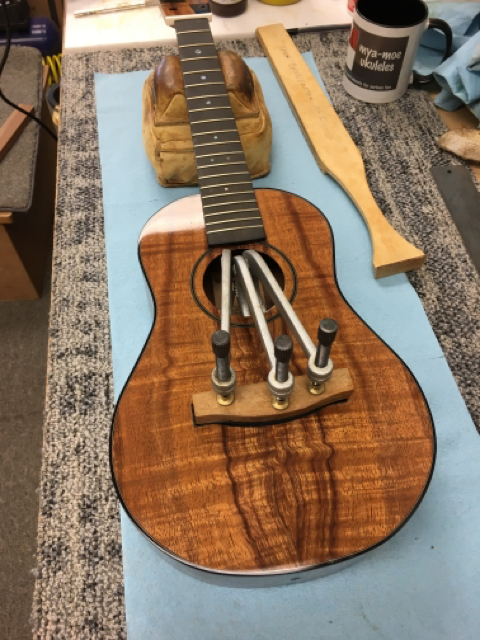

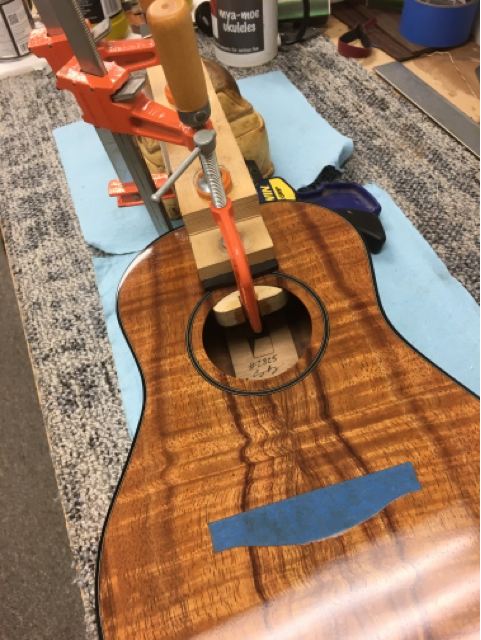

glue on bridge

14

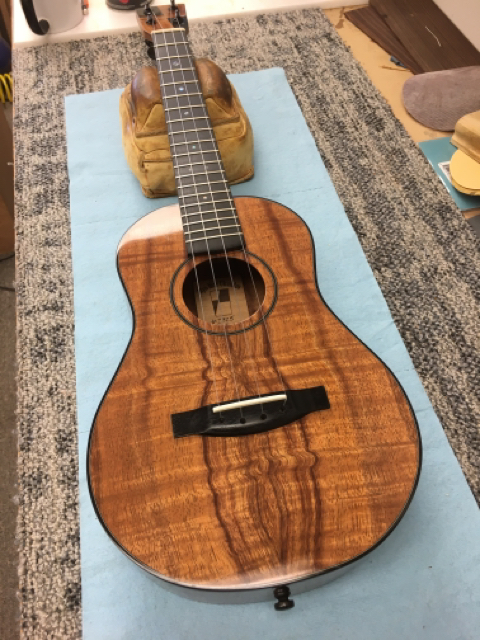

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

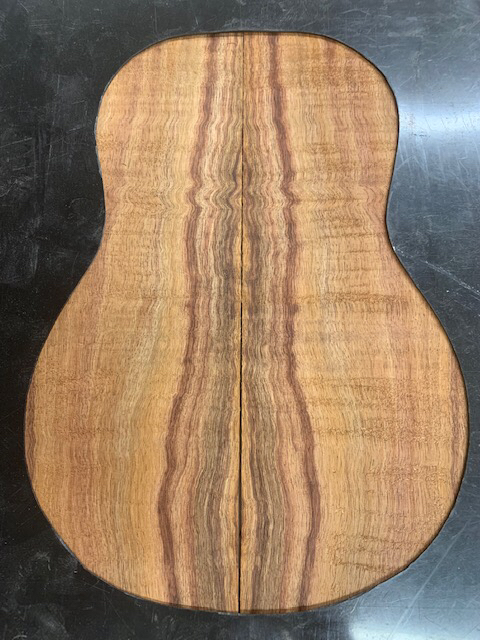

Original Wood Set
