" 1770 arrived today safe and sound despite the weather there, here and on the way. Settling in to the climate change, but I have it in my humidified room. She’s beauty, both in looks and sound. Plays so easily as well."

- Alan R.



(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Master Grade Curly Mango top, back & sides

  • Bloodwood body binding with Abalone purfling on top

  • Abalone rosette

  • Hand-rubbed oil finish

  • Radiused Ebony fretboard with Bloodwood binding & Abalone markers

  • Mahogany neck

  • Slotted Headstock with Schertler tuners

  • Custom Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Gordon & Char Mayer and Aaron Keim. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: This wood species is available by ordering Master Grade Mango

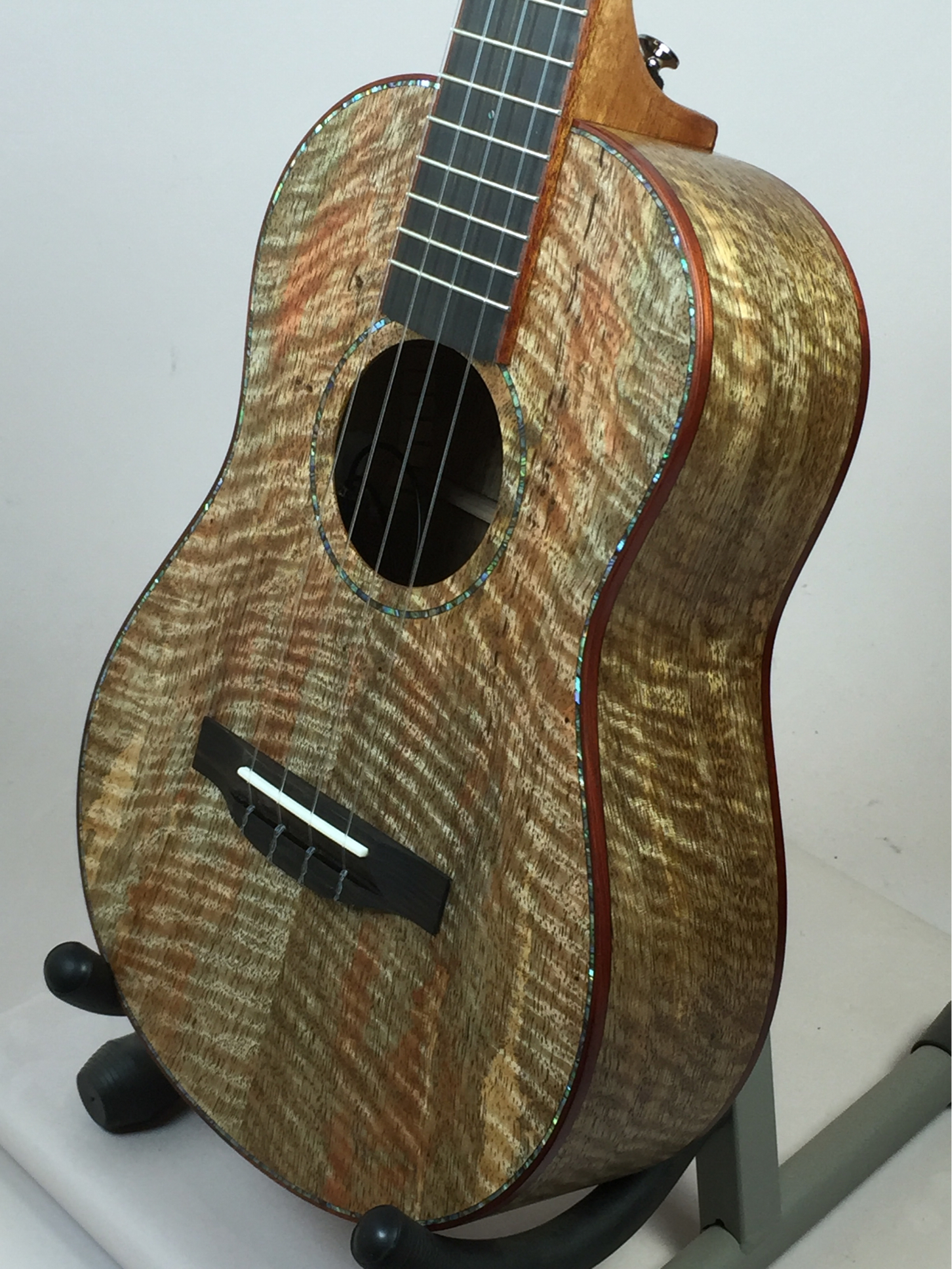

Gallery Photos (completed instrument)

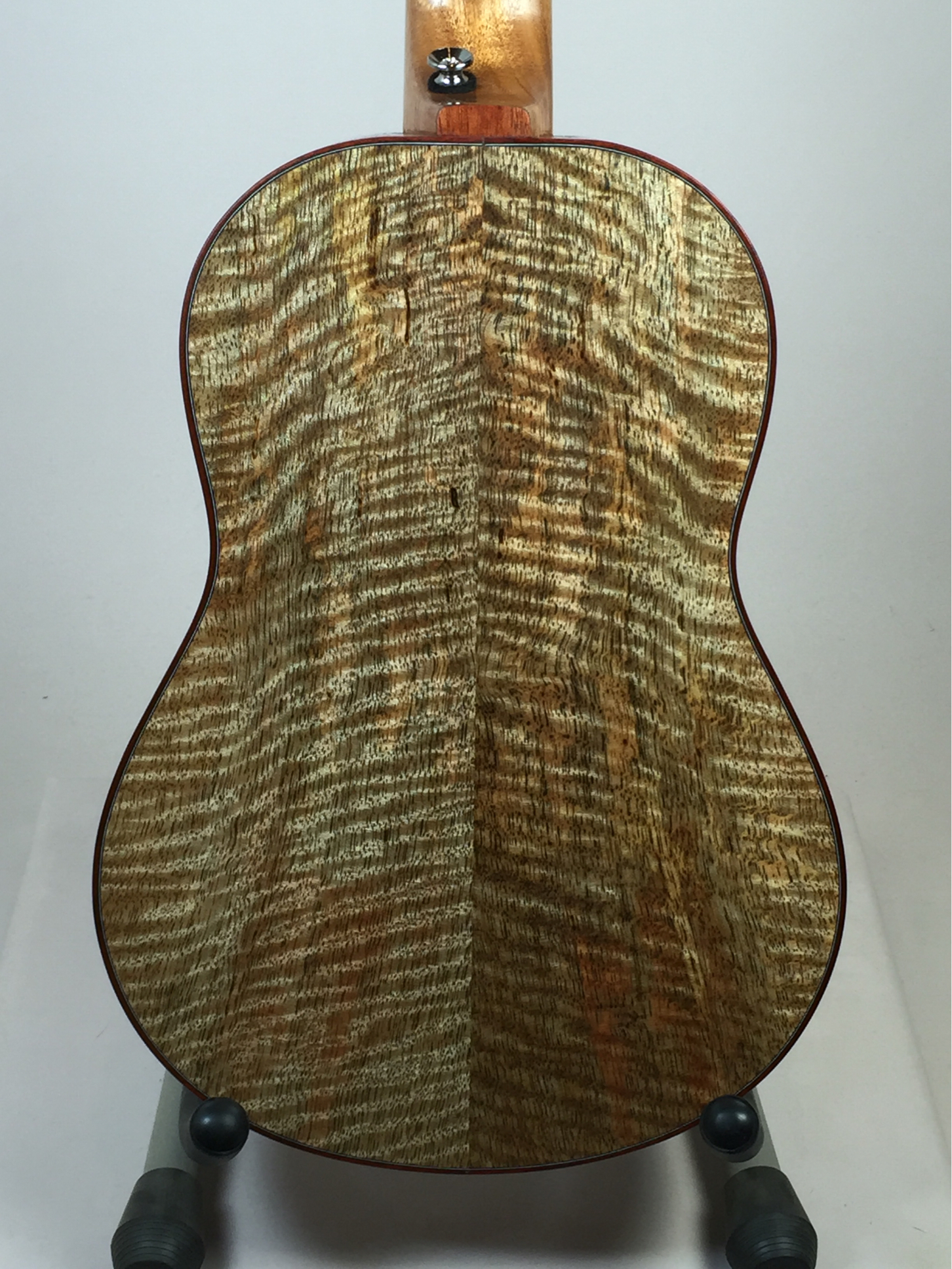

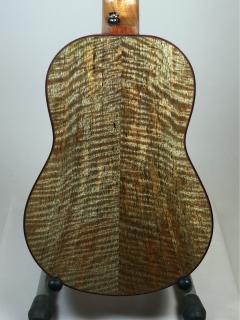

Back

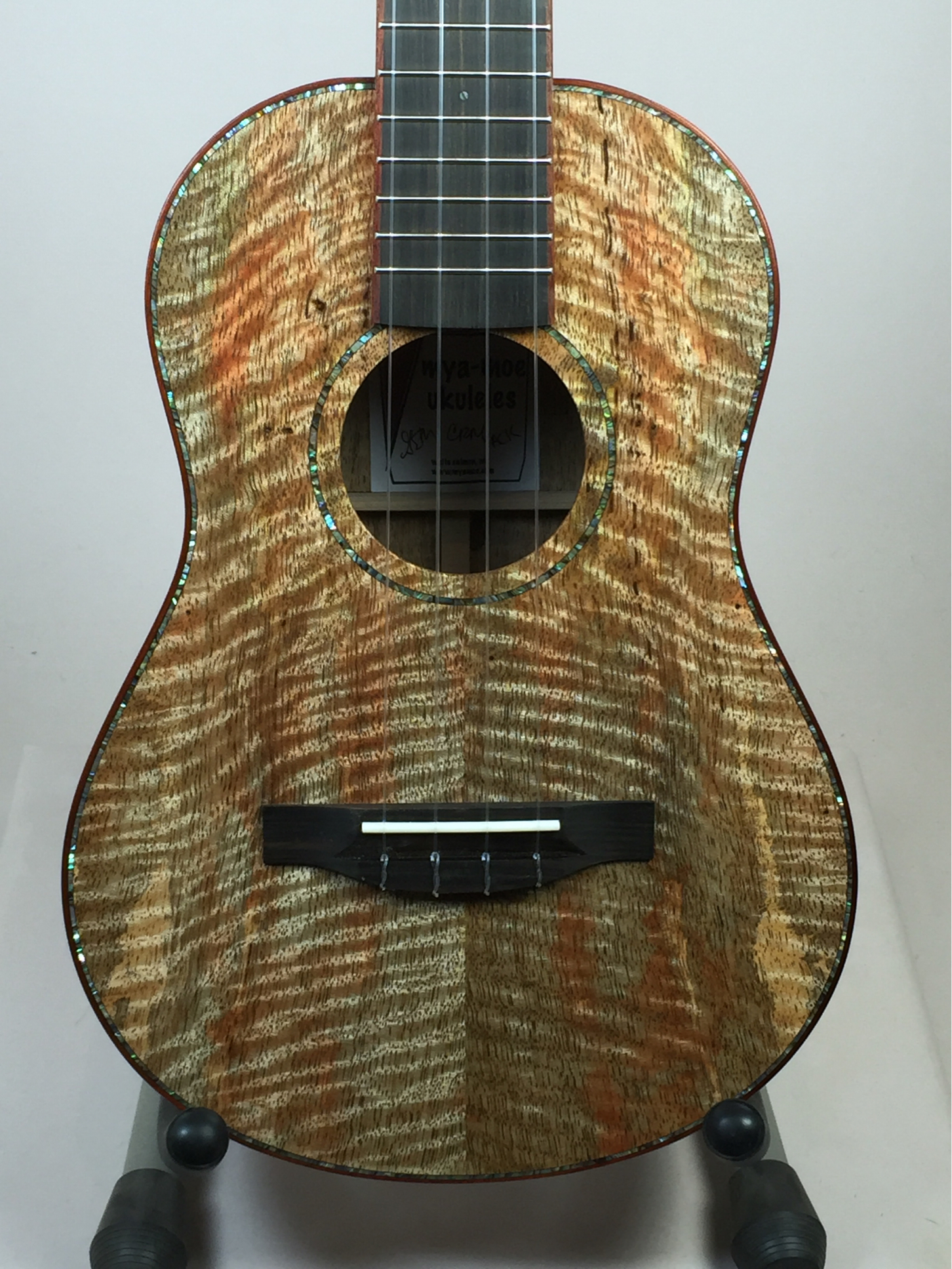

Front

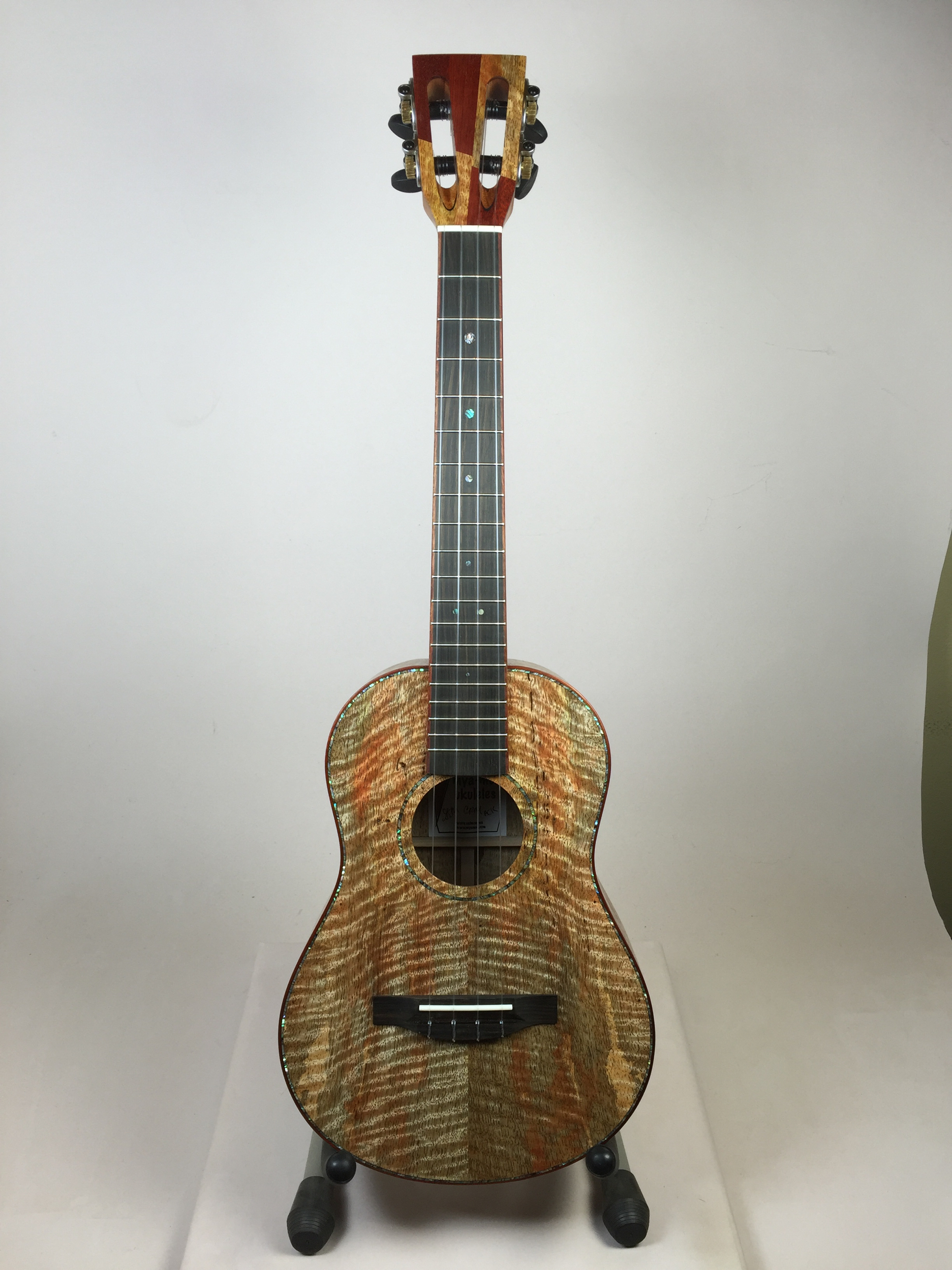

Full Front
Owner Pics & Instrument Videos
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

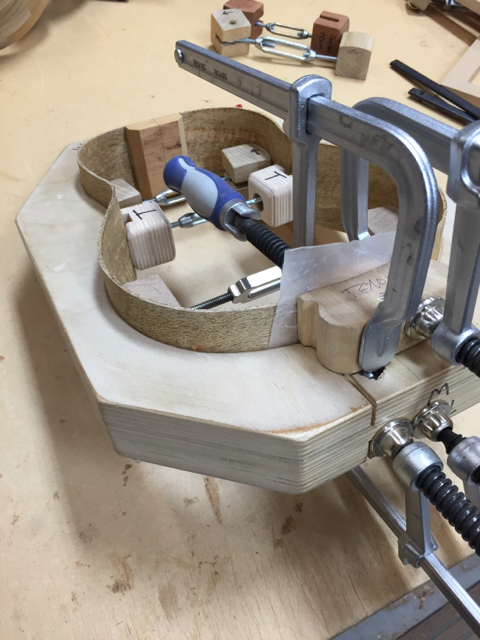

bend sides, glue in neck block

2

glue in tail block

3

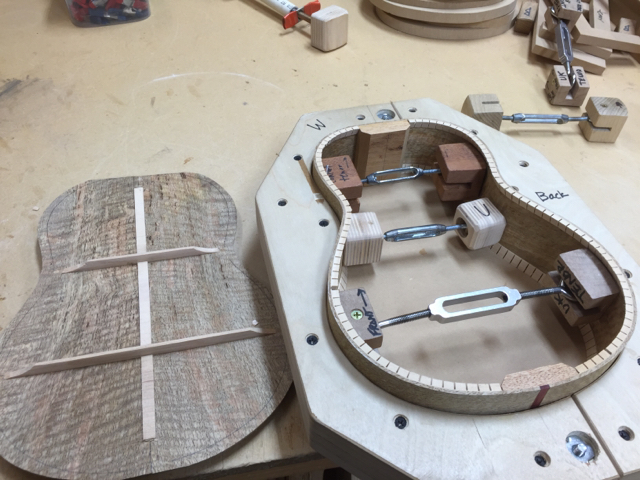

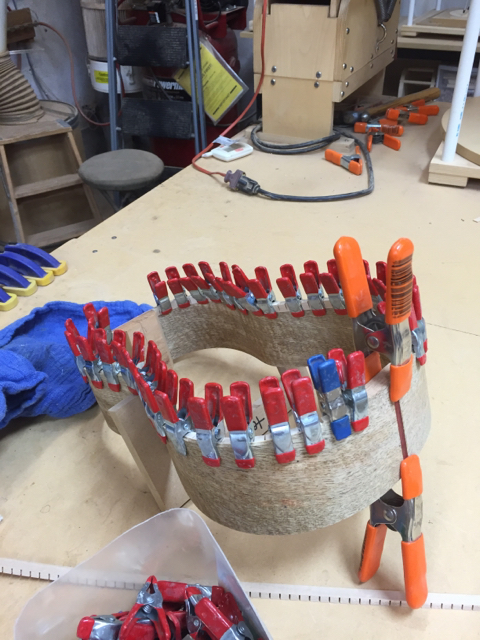

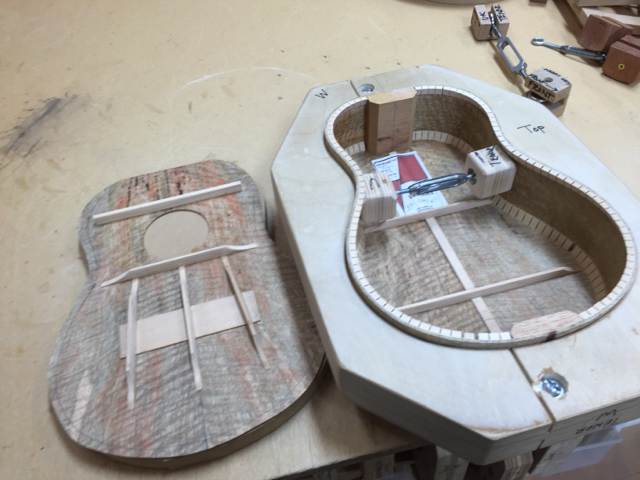

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back

4

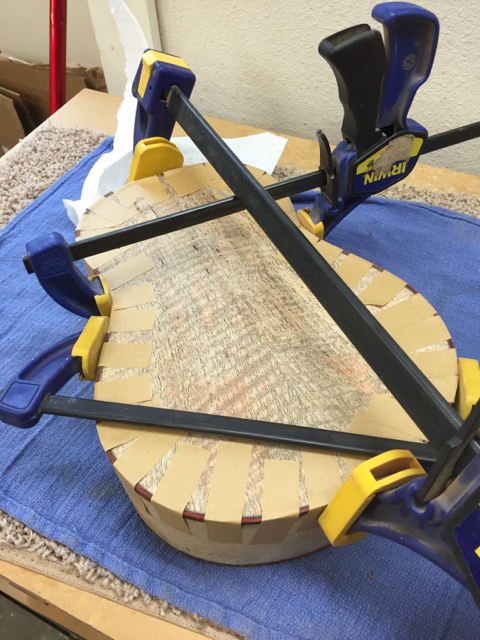

brace top, glue back onto sides

5

glue top onto sides, prep fretboard & neck

6

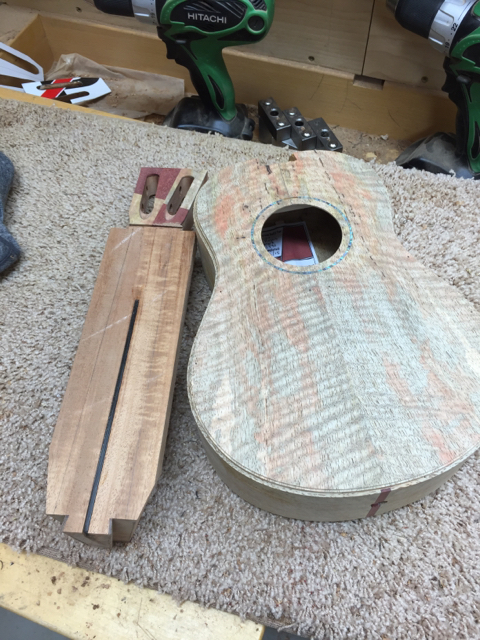

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding

7

shape neck, dress fret ends, glue in back binding

8

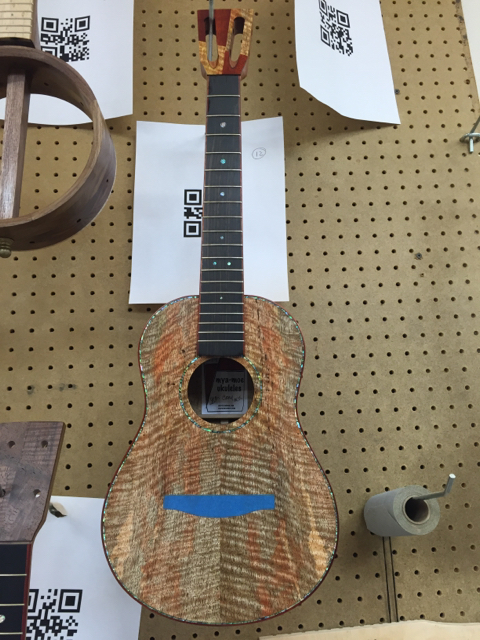

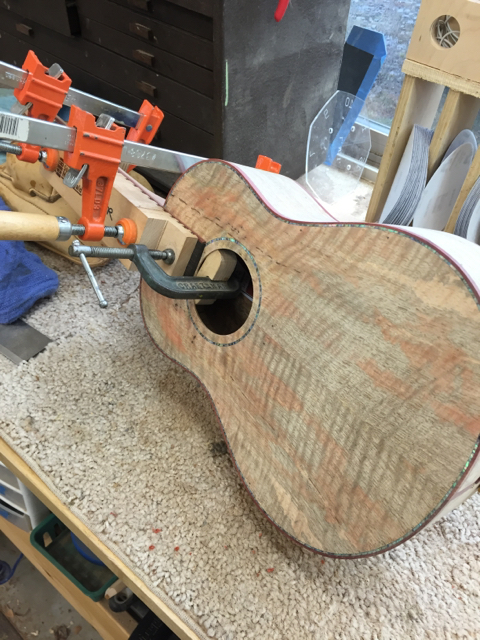

prep for finish, glue neck/fretboard onto body

9

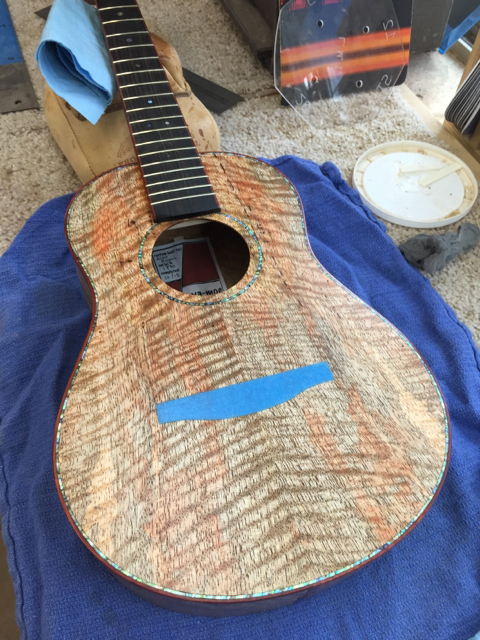

first coat of oil

10

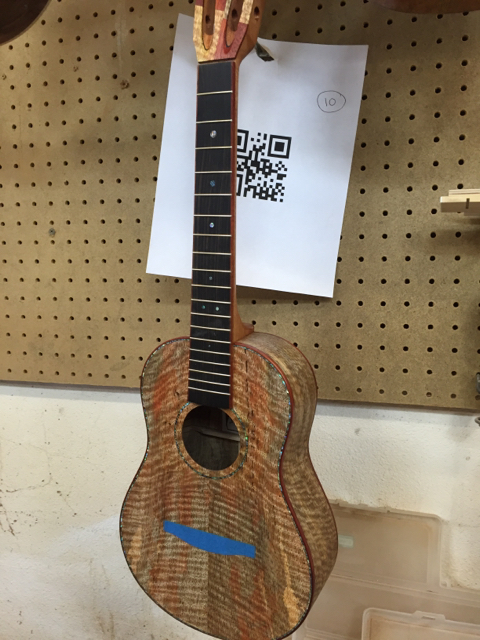

second coat of oil

11

third coat of oil

12

fourth coat of oil

13

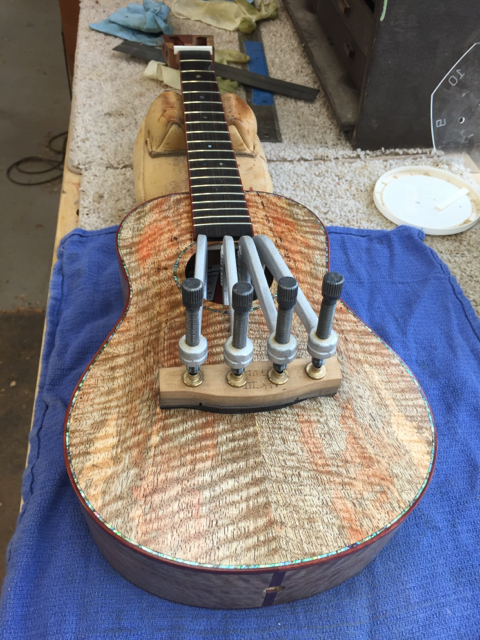

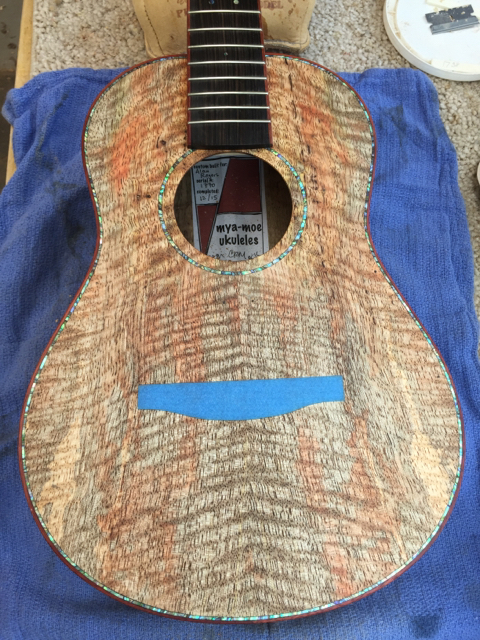

apply lemon oil, glue on bridge

14

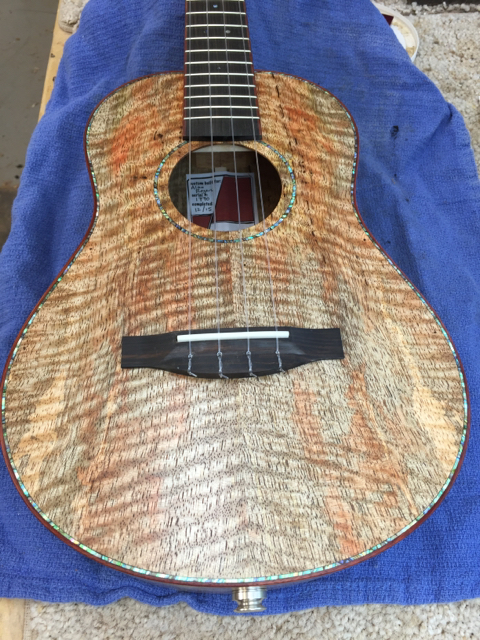

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

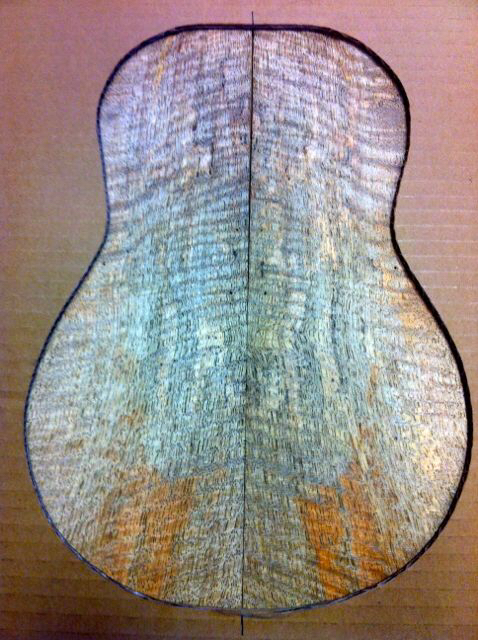

Original Wood Set
