Scheduled Start Date: Mar 26, 2010
Completed: Apr 20, 2010

  • Master Grade Chocolate Heart Mango top, back & sides

  • Koa body binding

  • Abalone rosette

  • High gloss polyester finish

  • Radiused Ebony fretboard with Koa binding & No markers

  • Mahogany neck

  • Peghed brand geared tuners

  • Leopardwood & Maple Signature Headplate

Hand-crafted in the USA by Gordon & Char Mayer. Each instrument is numbered & signed.



Wood Grade: Master
Wood Availability: Sorry, this wood is no longer available.

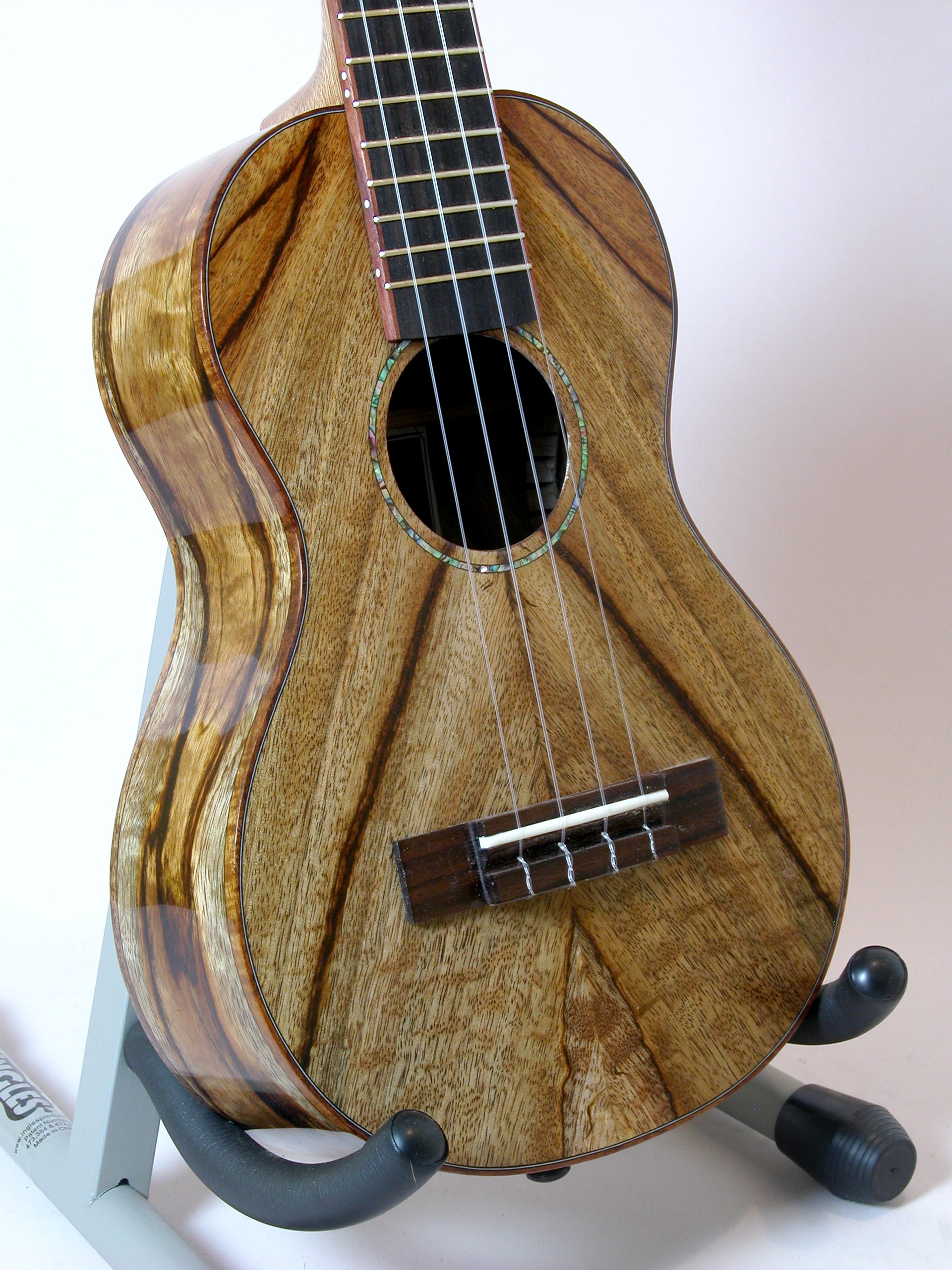

Gallery Photos (completed instrument)

Back

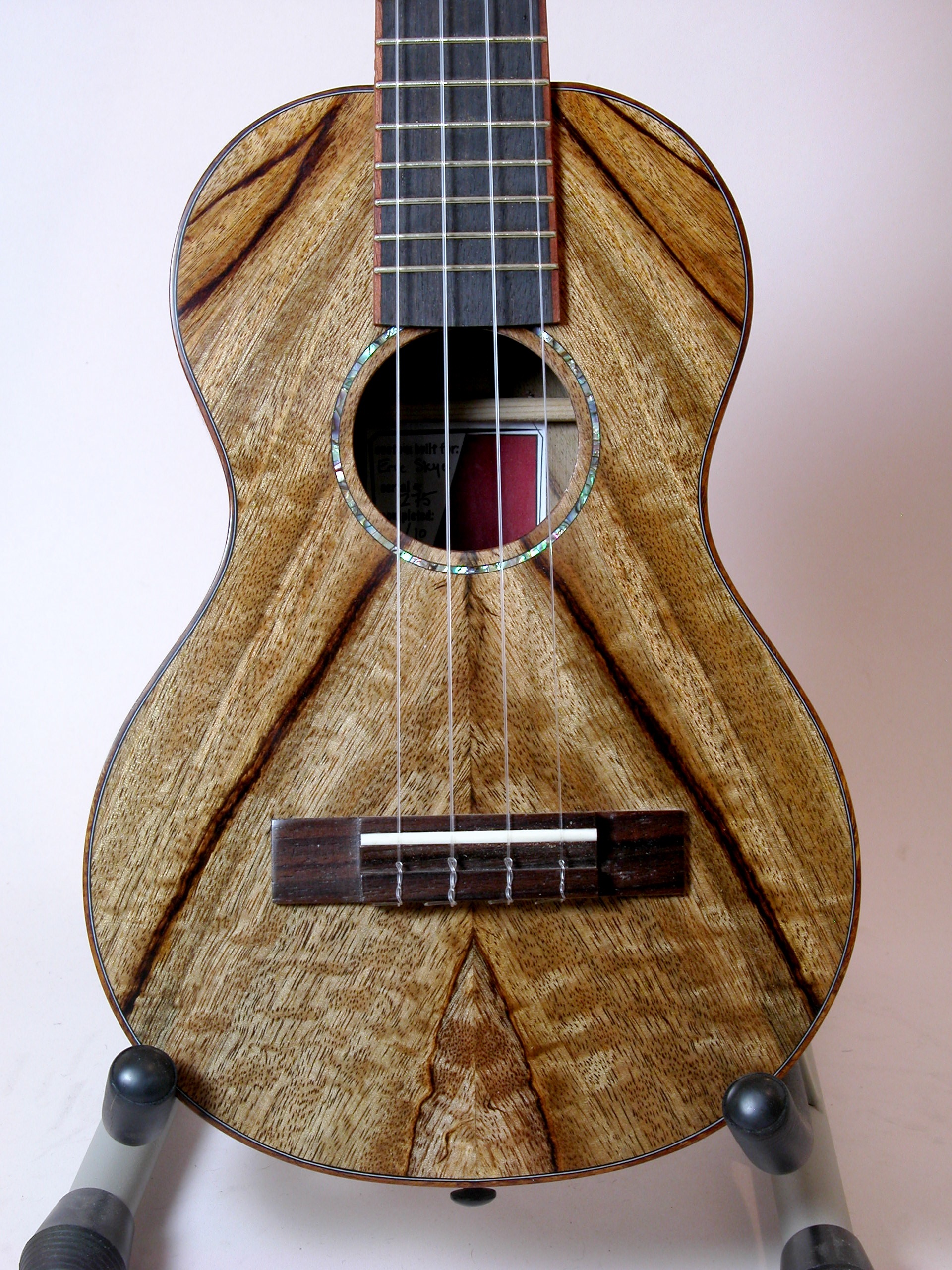

Front

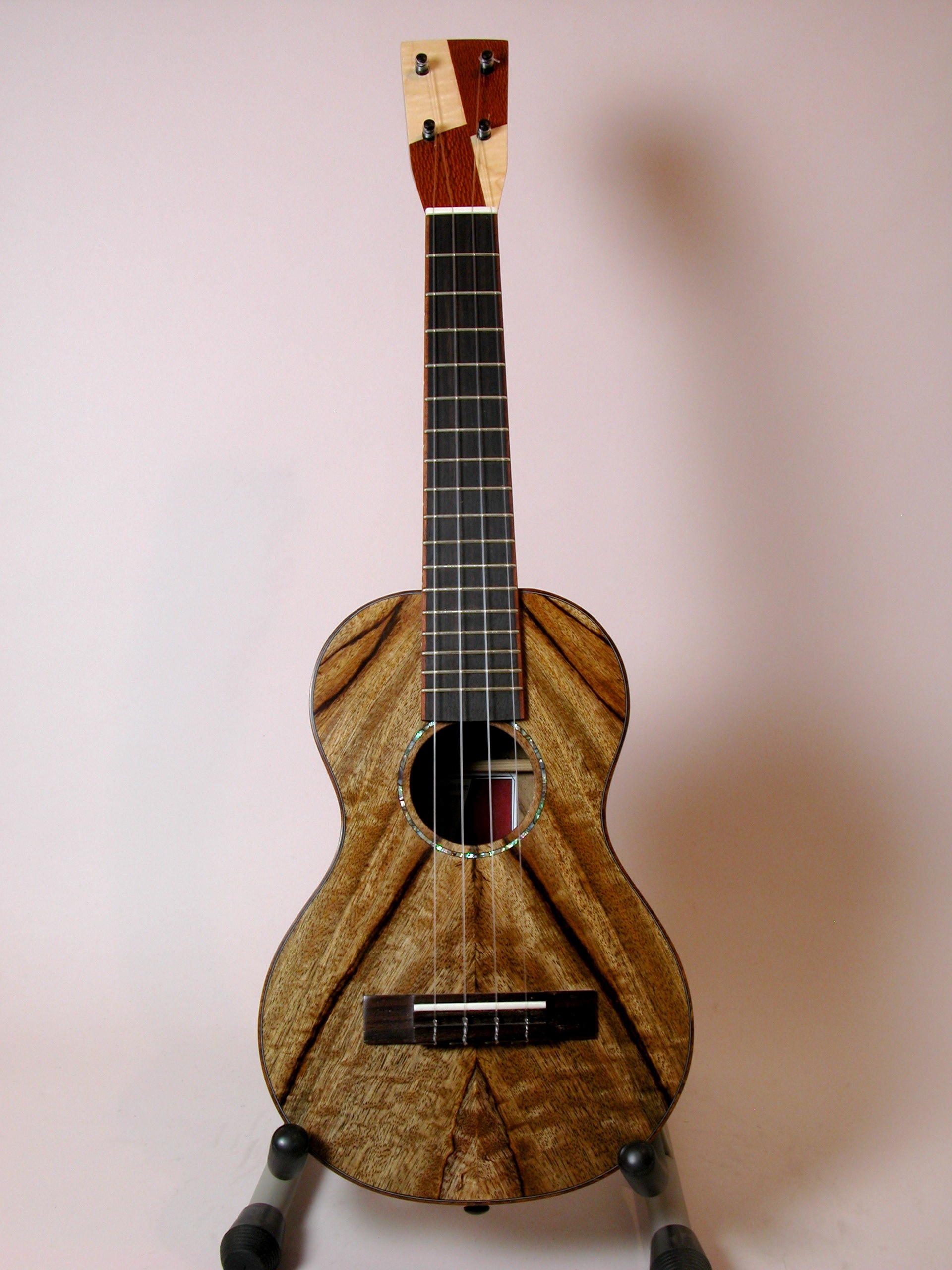

Full Front
Owner Pics & Instrument Videos
Build Schedule


Date





1

bend sides, glue in neck block



2

glue in tail block



3

rout & glue-in end graft, kerf top edge, kerf bottom edge, brace back



4

brace top, glue back onto sides



5

glue top onto sides, prep fretboard & neck



6

clean up body, rout dovetail, drill tuner holes, glue fretboard onto neck, rout binding channels, glue in top binding



7

shape neck, dress fret ends, glue in back binding



8

prep for finish, tape off for spraying



9

fill pores twice



10

first coat of poly topcoat



11

second coat of poly topcoat



12

sand & buff finish, glue neck/fretboard onto body



13

glue on bridge



14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings
