(scroll down for more photos)



Share this UkeTracker page on Facebook:

  • Exhibition Grade Koa top, back & sides

  • Maple body binding

  • Maple rosette

  • Hand-rubbed oil finish

  • Radiused Maple fretboard with Maple binding & Abalone markers

  • Port Orford Cedar neck

  • Gotoh UPT 4:1 Planetary gear tuners

  • Custom Signature Headplate

  • K&K Twin Spot pickup

Hand-crafted in the USA by Cary Kelly. Each instrument is numbered & signed.



Wood Grade: Tradition
Wood Availability: Sorry, this wood is not currently available for custom orders

Cascade Series Wood Cascade Series Wood

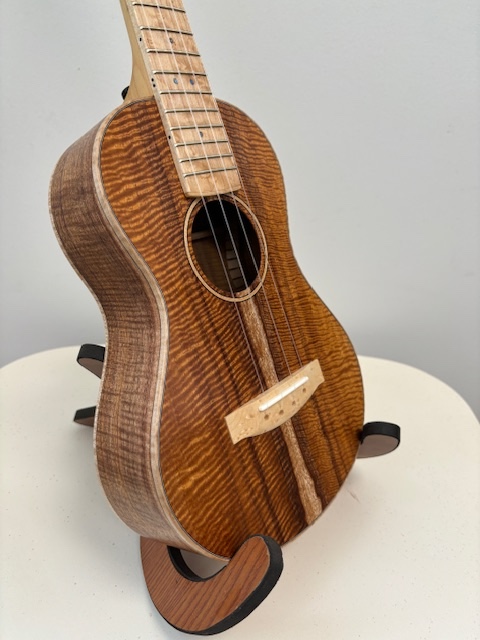

Gallery Photos (completed instrument)

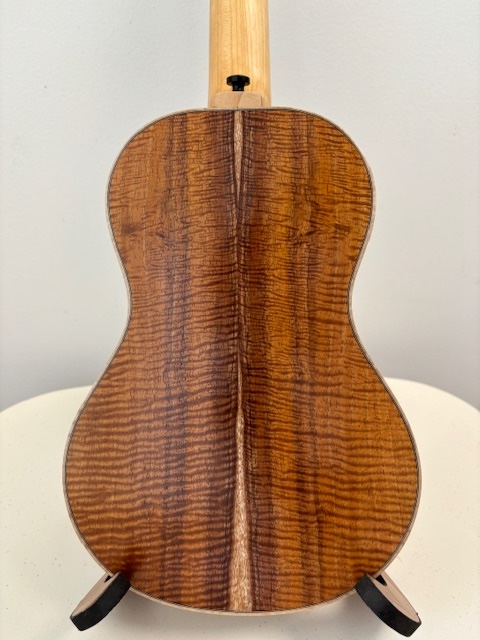

Back

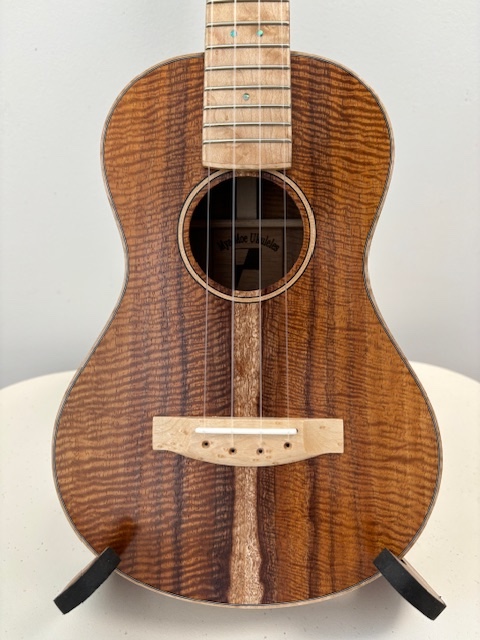

Front

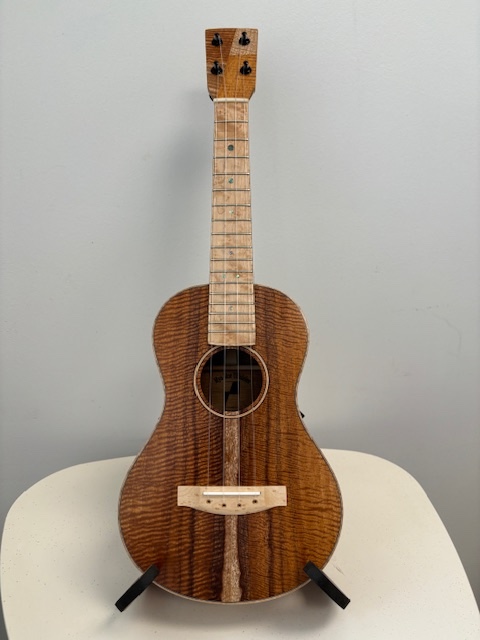

Full Front
Build Schedule

Step

Description

 Picture, Click to Enlarge

1

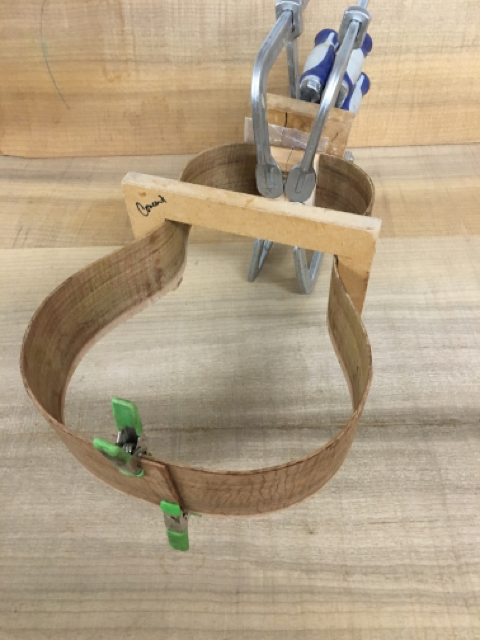

bend sides, glue in neck block

2

glue in tail block



3

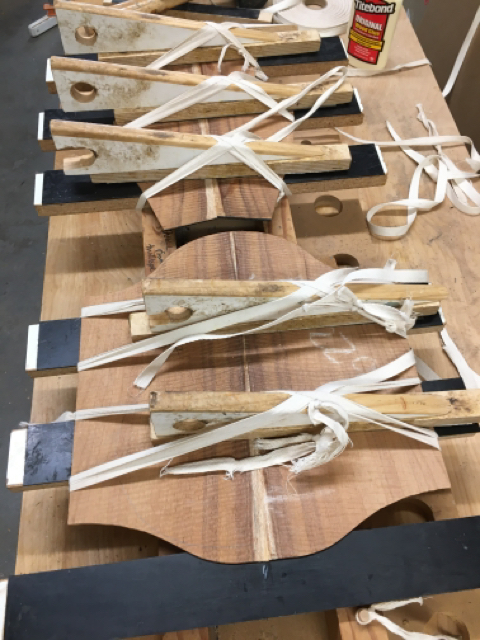

rout & glue-in end graft, kerf top edge, kerf bottom edge, join top/back plates

4

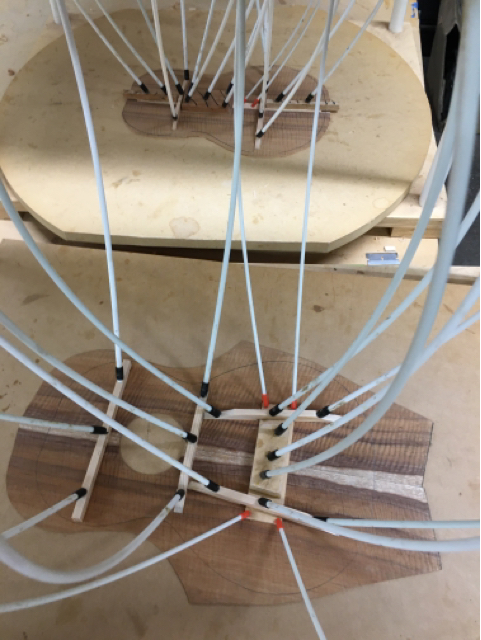

brace top/back, glue back onto sides

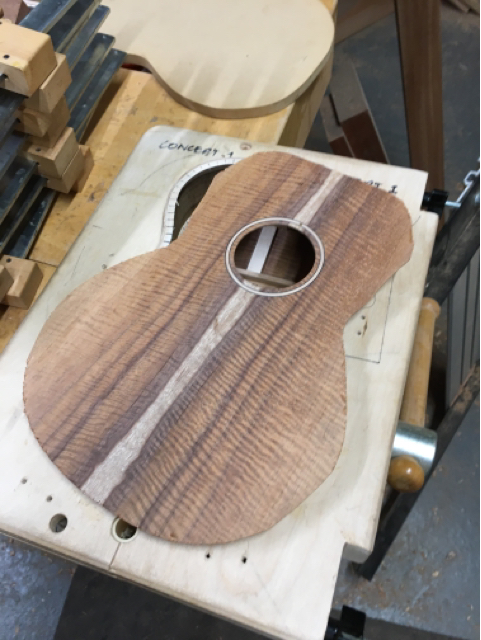

5

carve braces, glue top onto sides, prep fretboard & neck

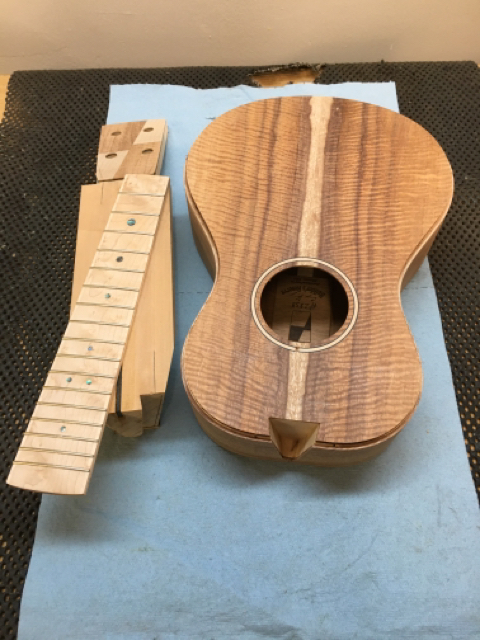

6

clean up body, rout dovetail, drill tuner holes, rout binding channels, glue in top binding

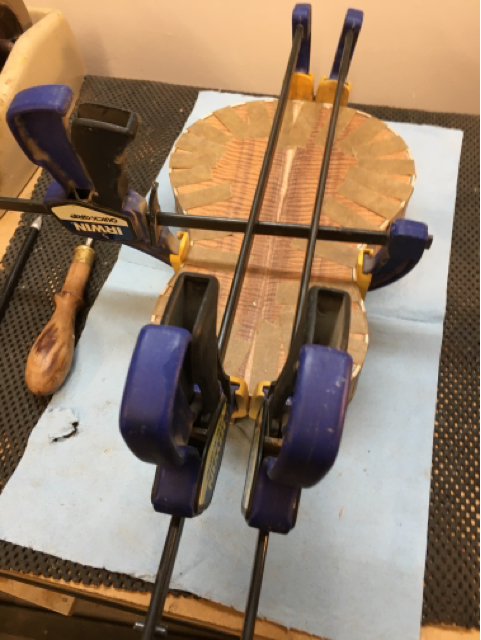

7

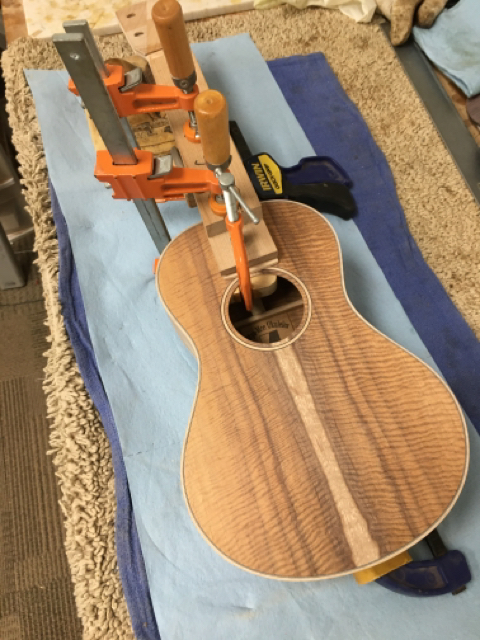

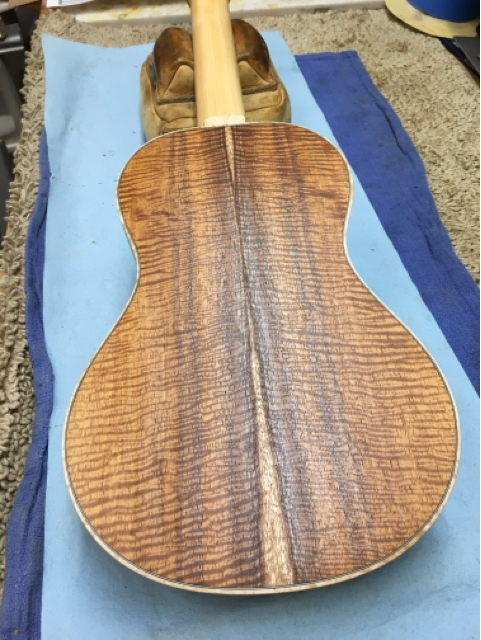

glue fretboard to neck, glue in back binding

8

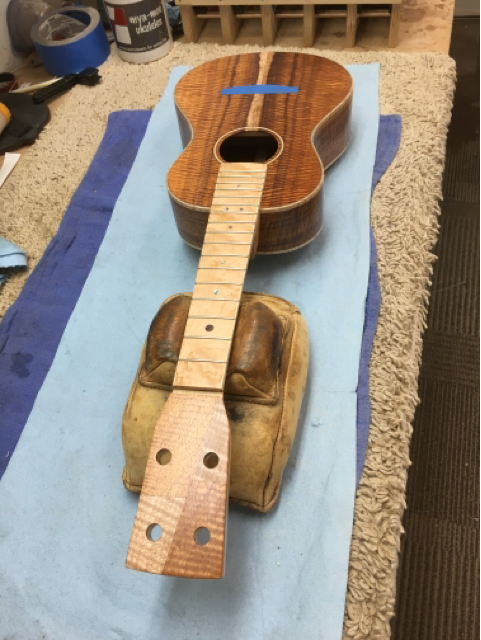

shape neck, dress fret ends, join neck to body

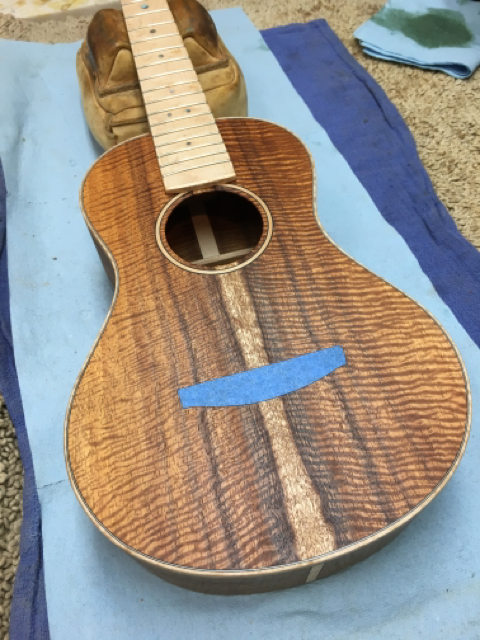

9

hand sand and prep for finish, first coat of oil

10

second coat of oil

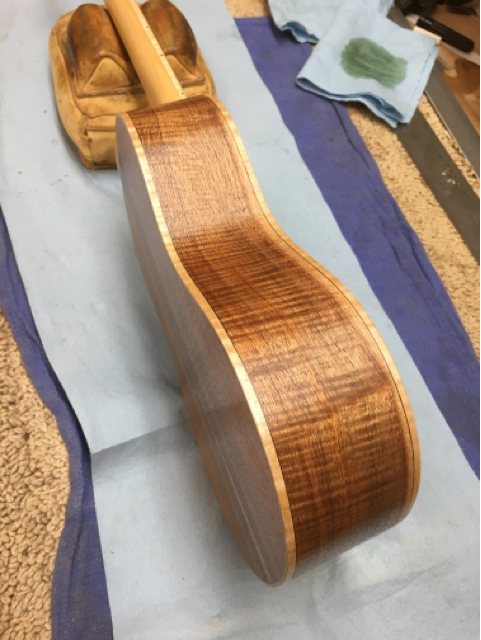

11

third coat of oil

12

fourth coat of oil

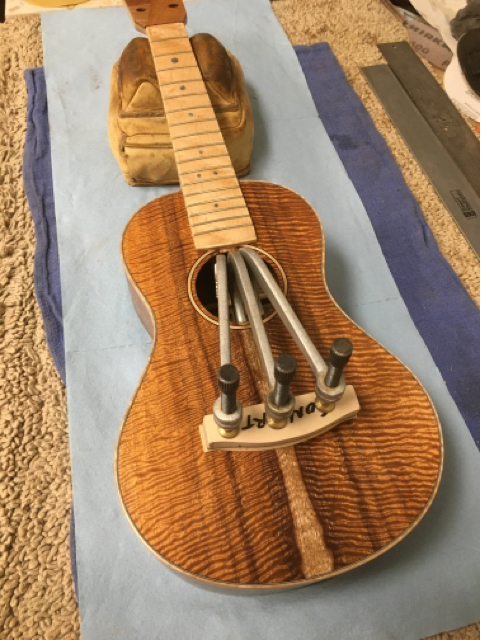

13

glue on bridge

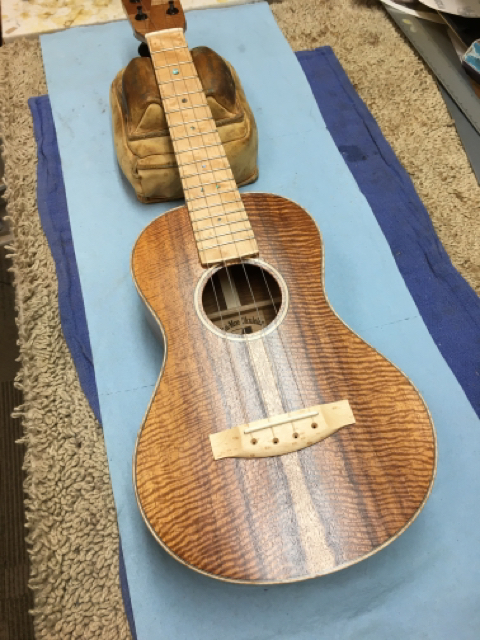

14

make saddle, (put in pickup, if any), cut nut, final fretwork, put in tuners, put on strings

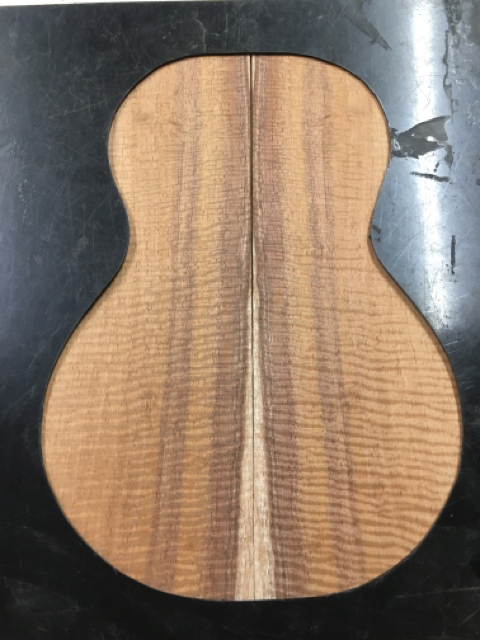

Original Wood Set
